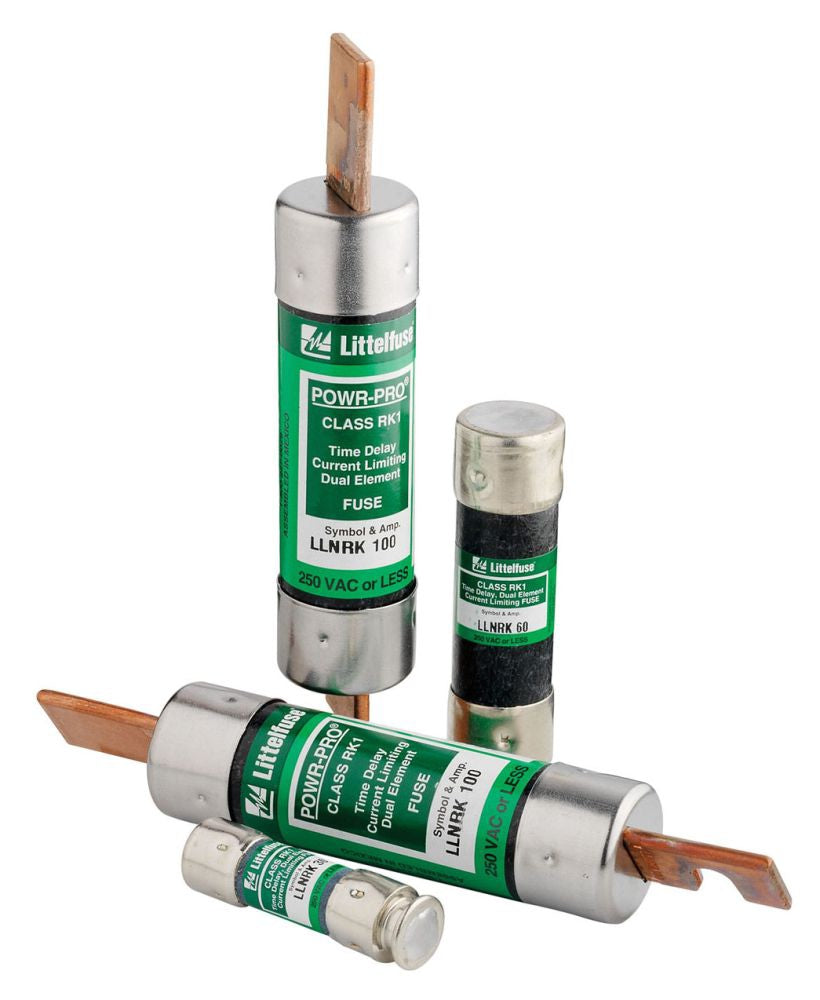

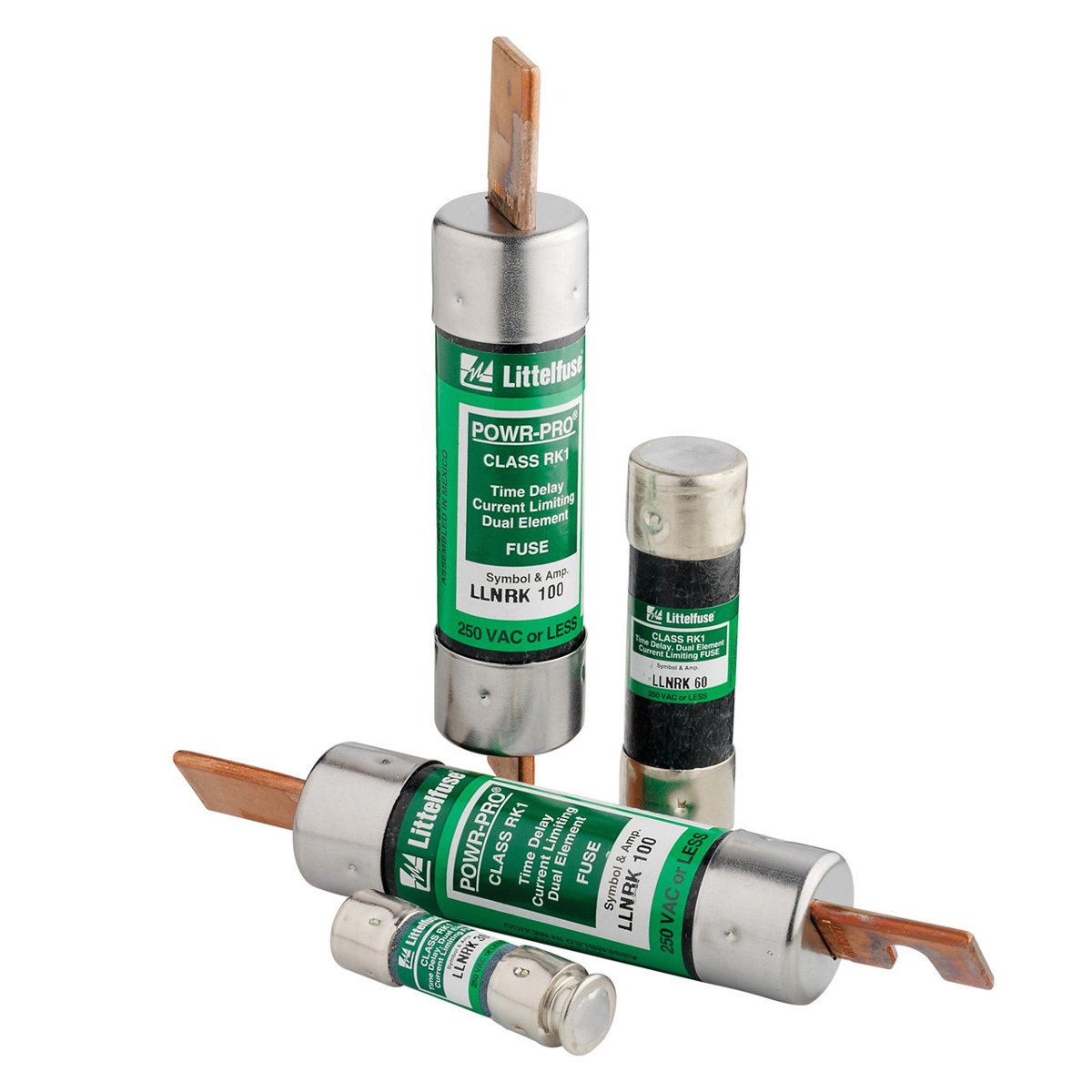

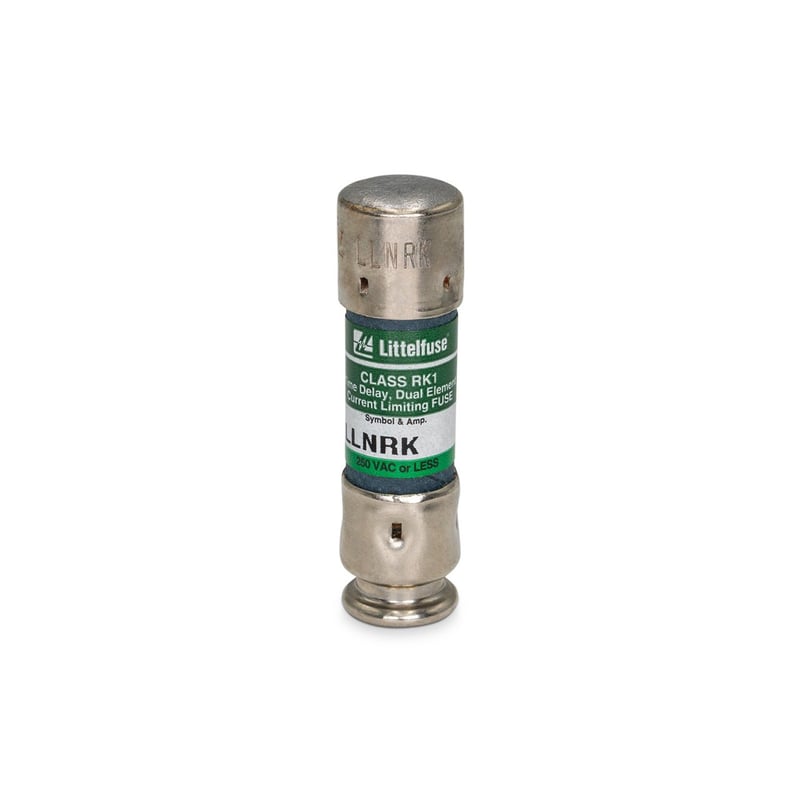

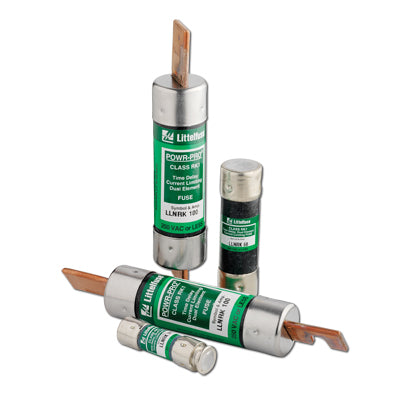

Littelfuse LLNRK030 LIT Current Limiting Time Delay Fuse 30 A 250 VAC/125 VDC 200/20 kA Interrupt RK1 Class

Product Description

Littelfuse LLNRK030 is a current limiting time delay fuse designed for effective overload and short circuit protection in electrical systems. It is suitable for service entrance, main, feeder, and general-purpose branch circuits up to six hundred amperes. This specific fuse features a cartridge body and is compatible with existing Class H fuse blocks. Additionally, it meets strict UL and CSA standards for safety and reliability.

• Rated for 30 A at 250 VAC/125 VDC.
• Interrupt ratings of 200/20 kA provide robust circuit protection.
• Non-indicating type ensures minimal maintenance interruptions.

Product Highlights

This fuse offers reliable protection for various applications including motors and transformers while minimizing the risk of damaging surges. Its dual element design enhances its time delay capabilities, making it suitable for circuits with high in-rush currents.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: LLNRK030

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 200/20 kA
• Body Size: 9/16 in Dia x 2 in L
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Ferrule
• Type: Current Limiting
• Rejection Type: Rejection
• Indicating Type: Non-Indicating
• Country of Origin: Mexico
