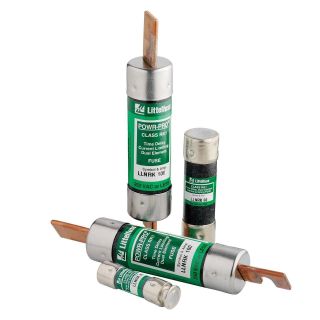

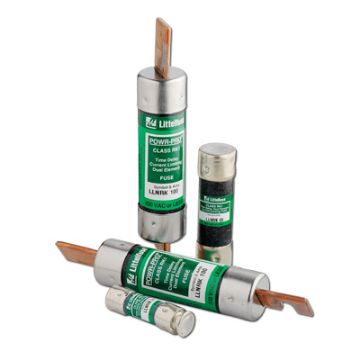

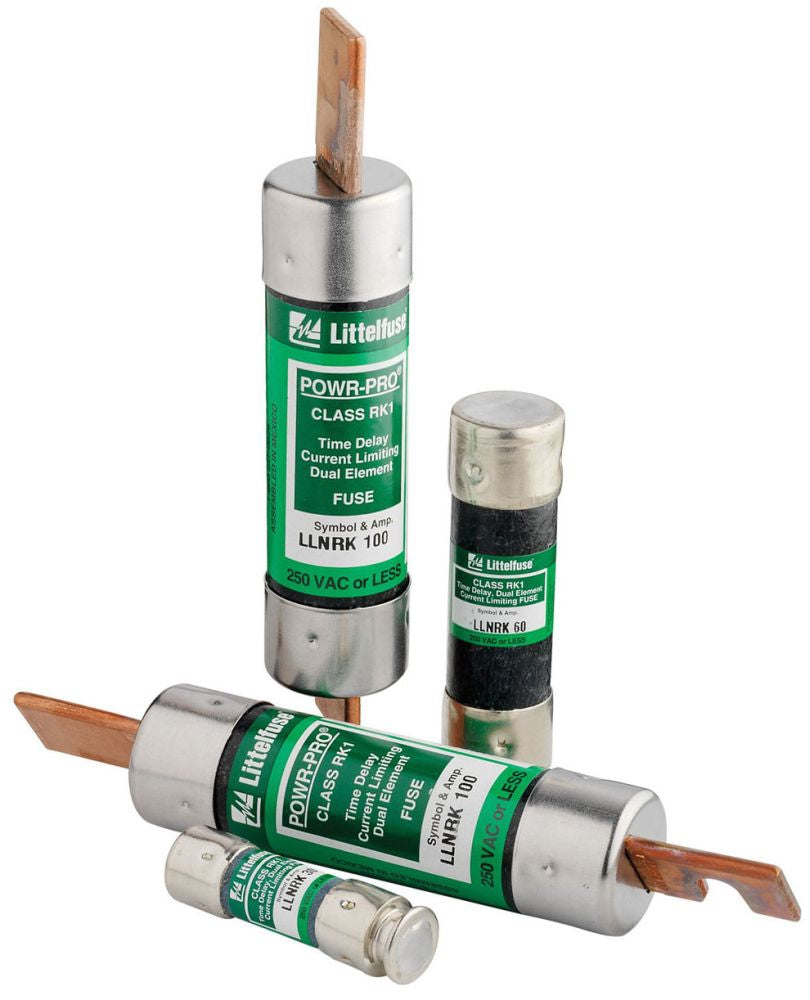

Littelfuse LLNRK025 LLNRK02.5 Current Limiting Time Delay Fuse 2.5 A 250 VAC/125 VDC

Product Description

The Littelfuse LLNRK025 is a current limiting time delay fuse with a rating of 2.5 A. It operates at 250 VAC and 125 VDC, designed for motor control and load protection. These fuses provide superior overload protection and short-circuit protection for service entrance, main, feeder, and branch circuits. This fuse is part of the LLNRK series and is compatible with Class H fuse blocks for system upgrades.

• Current Limiting Design - Protects circuits from damage in short-circuit conditions.
• Interrupt Rating - 200 kA at 250 VAC and 20 kA at 125 VDC.
• Easy Installation - Ferrule terminal design suits standard fuse holders.

Product Highlights

Utilizes a dual element design that enhances performance during power surges while minimizing downtime.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Series: LLNRK

Technical Specifications

• Amperage Rating: 2.5 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupt Rating: 200/20 kA
• Body Size: 9/16 in Dia x 2 in L
• Material: Melamine
• Body Type: Cartridge
• Terminal Type: Ferrule
• Mounting Type: Holder
• Country of Origin: Mexico
