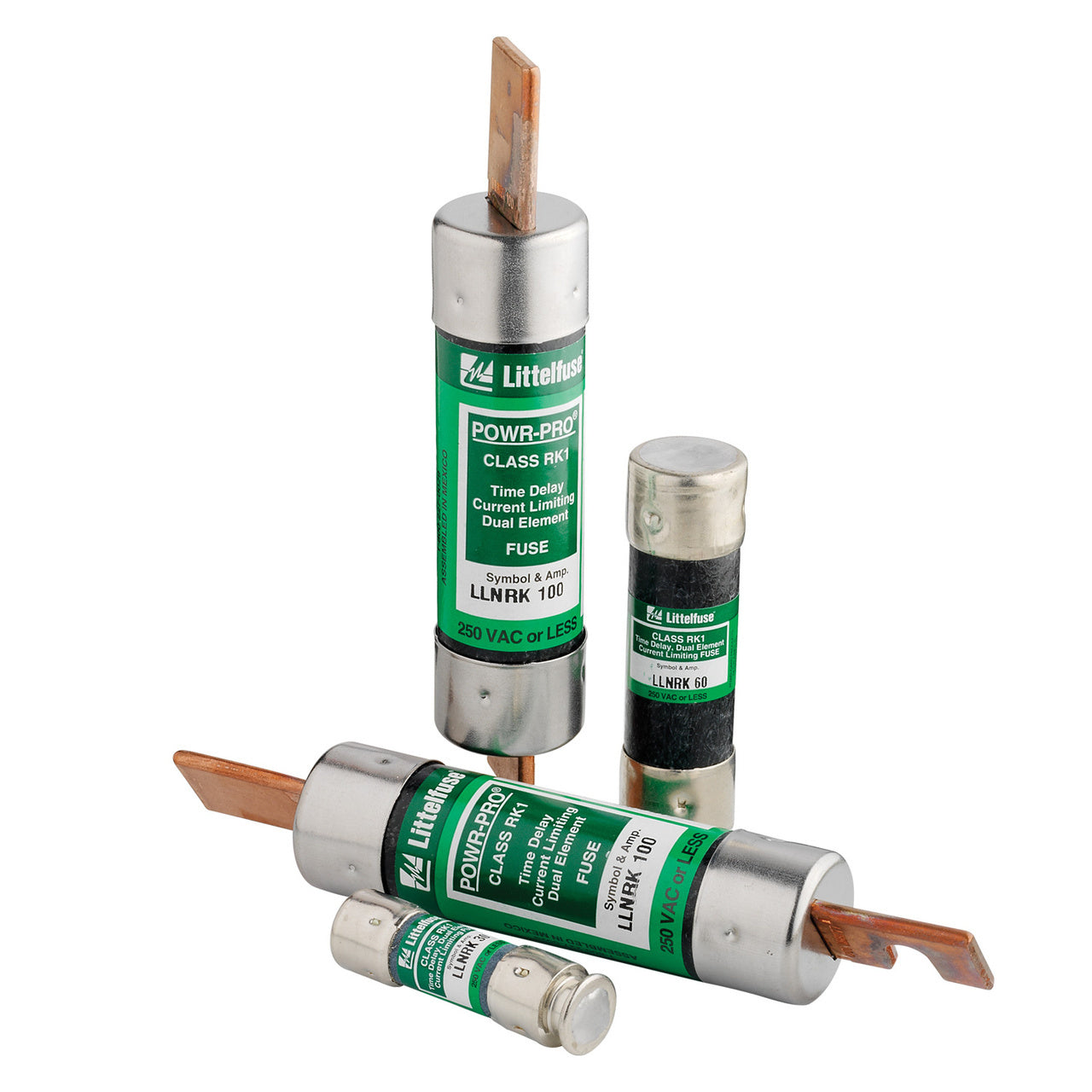

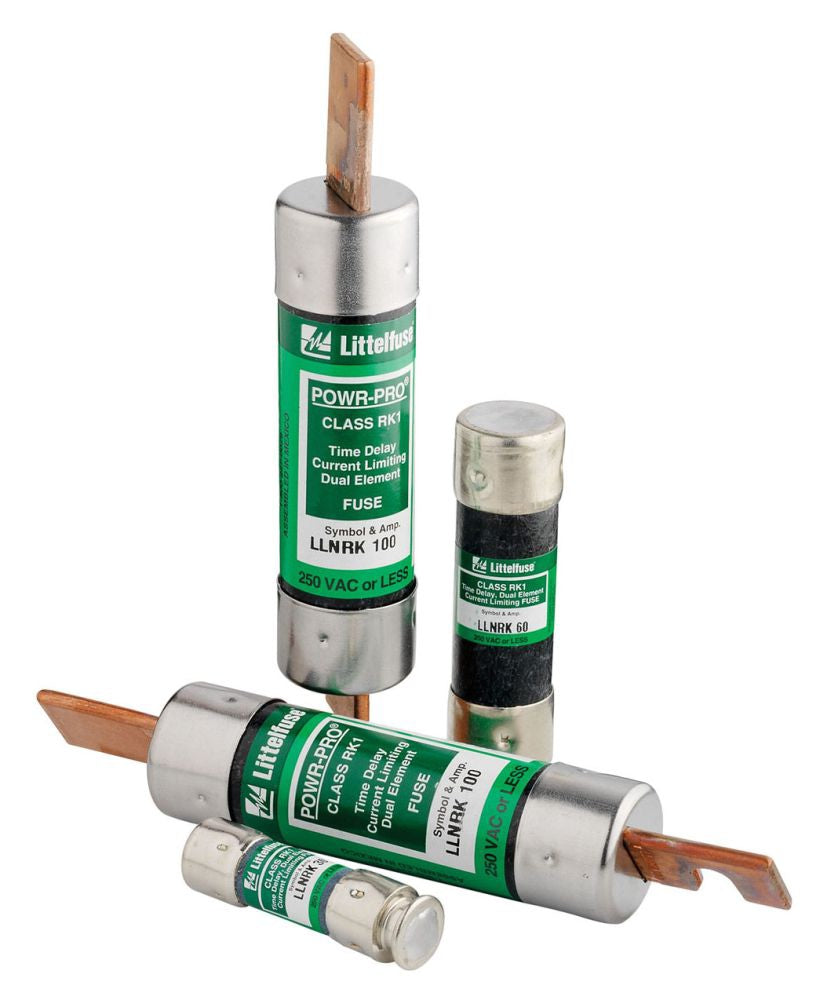

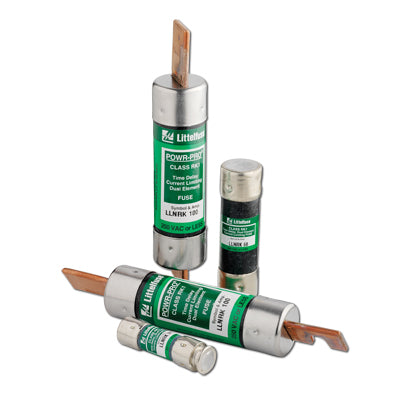

Littelfuse LLNRK010 UL Class RK1 Dual Element Time Delay Fuse

Product Description

Littelfuse LLNRK010 is a Powr-Gard time delay fuse designed for overload and short circuit protection. It is suitable for service entrance, main, feeder, and general-purpose branch circuits up to six hundred amperes. This fuse can replace existing Class H fuses in compatible fuse blocks.

• Rated for 10 amperes, 250 VAC/125 VDC
• Current limiting design to prevent damage during short circuits
• Installed in Class H fuse blocks for better performance

Product Highlights

This fuse meets UL 248-12 and CSA standards, ensuring safety and reliability in electrical systems.

Product Information

Standard Information

• Catalog Number: LLNRK010
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 10 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 200 kA
• Type: Current Limiting
• Material: Melamine
• Body Size: 9/16 in Diameter x 2 in Length
• Standard: UL 248-12, CSA LR29862
• Country of Origin: Mexico
