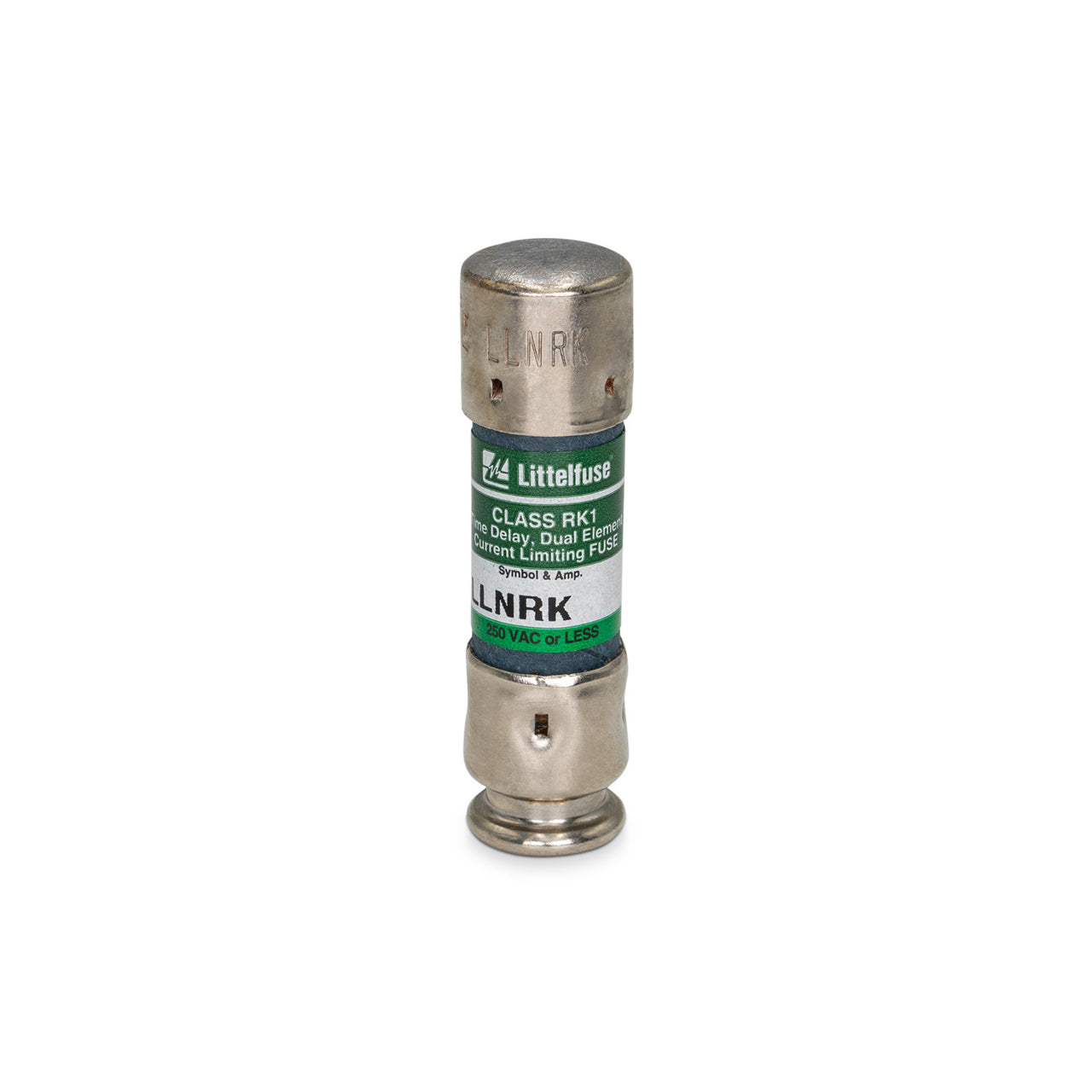

Littelfuse LLNRK005 Powr-Gard current limiting time delay fuse 5 A 250 VAC/125 VDC (9/16 in x 2 in)

Product Description

Littelfuse LLNRK005 is a POWR-GARD current-limiting, dual-element time-delay cartridge fuse rated 5 A for 250 VAC / 125 VDC service. It is a Class RK1 rejection-type fuse in a melamine cartridge (9/16 in diameter x 2 in length) with ferrule terminals for holder mounting, providing overload and short-circuit protection for service entrance, main, feeder and general-purpose branch circuits up to 600 A.

• Dual-element, time-delay construction for repeated surge endurance and reduced nuisance openings
• Current-limiting design with interrupting rating of 200 kA at 250 VAC and 20 kA at 125 VDC
• Melamine cartridge (9/16 in x 2 in) with ferrule terminal and holder mounting; non-indicating rejection style

Product Highlights

Class RK1, 5 A time-delay current-limiting fuse; 250 VAC/125 VDC rated; 9/16 in x 2 in melamine cartridge; 200 kA AC / 20 kA DC interrupting capability.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: LLNRK005
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Littelfuse
• Manufacturer Part Number: LLNRK005
• Brand: Littelfuse
• Series: LLNRK
• Fuse Class: RK1
• Type: Current limiting, time-delay
• Element: Dual
• Rated Current: 5 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupting Rating: 200 kA at 250 VAC; 20 kA at 125 VDC
• Body Type: Cartridge
• Body Size: 9/16 in diameter x 2 in length
• Material: Melamine
• Terminal Type: Ferrule
• Mounting Type: Holder
• Indicating: Non-Indicating
• Rejection Type: Rejection (RK1)
• Application: Service entrance, main, feeder and general-purpose branch circuits up to 600 A
• Standards/Approvals: UL 248-12; CSA; Federal Specification WF-1814
• Country of Origin: Mexico
