Littelfuse LFT600603C Fuse Block 600 VAC 60 A Class T

Product Description

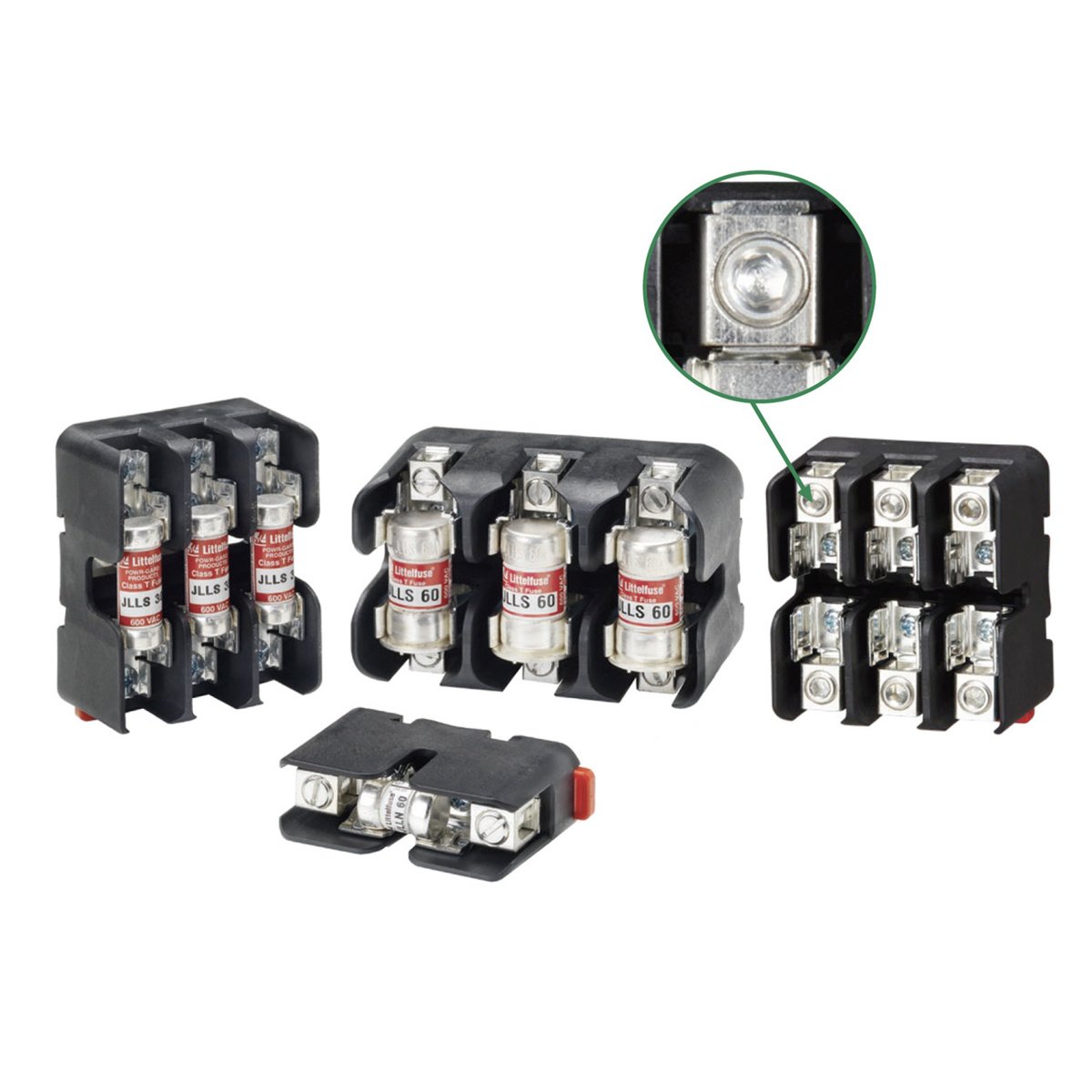

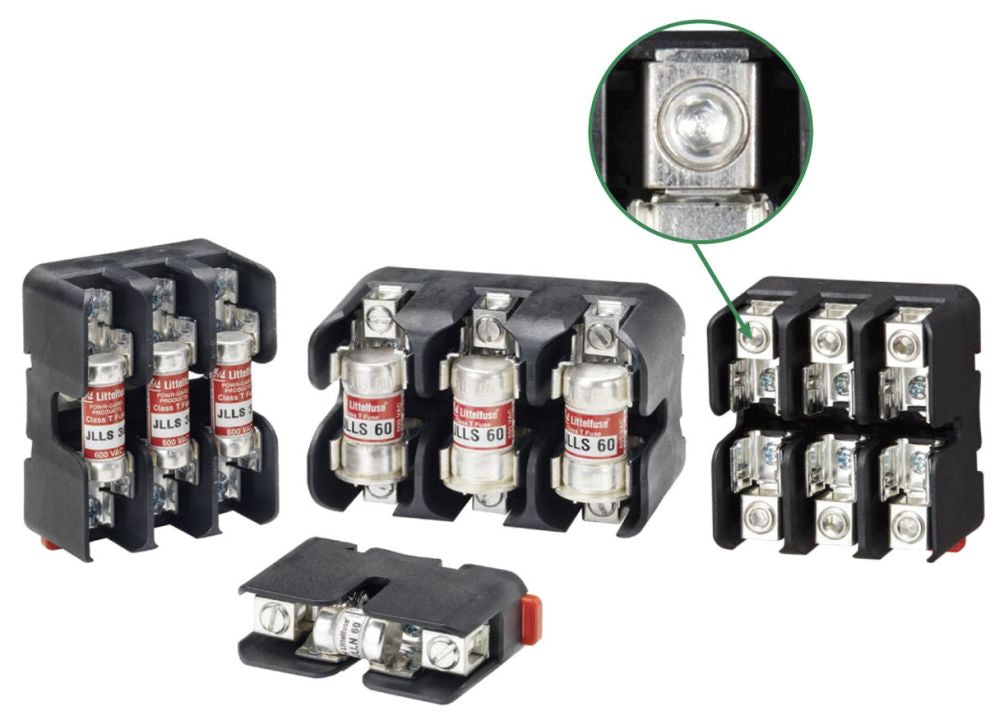

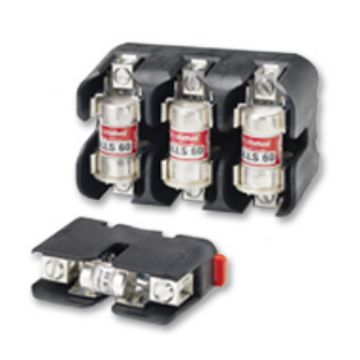

The Littelfuse Fuse Block, MPN LFT600603C, is designed for high-capacity applications. This fuse block operates at a voltage of six hundred VAC and can handle an amperage rating of sixty. It is suitable for use with JLLS Series fuses and supports wire sizes ranging from four to two AWG and fourteen to six AWG. Its compact design allows for space-saving installations, particularly in crowded electrical panels.

• Constructed from durable phenolic material
• Universal mounting holes facilitate easy installation
• Reinforced clips ensure a secure connection

Product Highlights

This fuse block features a DIN rail mounting option and is capable of accommodating three poles. It measures two point eighty-five inches in length, four point forty-two inches in width, and two point thirteen inches in height.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer: Littelfuse

Technical Specifications

• Class: T
• Voltage Rating: 600 VAC
• Amperage Rating: 60 A
• Wire Size: 4 to 2 AWG, 14 to 6 AWG
• Fuse Length: 1.56 in
• Fuse Diameter: 1 in
• Connection Type: Box Lug
• Mounting Type: DIN Rail
• Number of Poles: 3
• Temperature Rating: 125 deg C
• Dimensions: 2.85 in L x 4.42 in W x 2.13 in H
