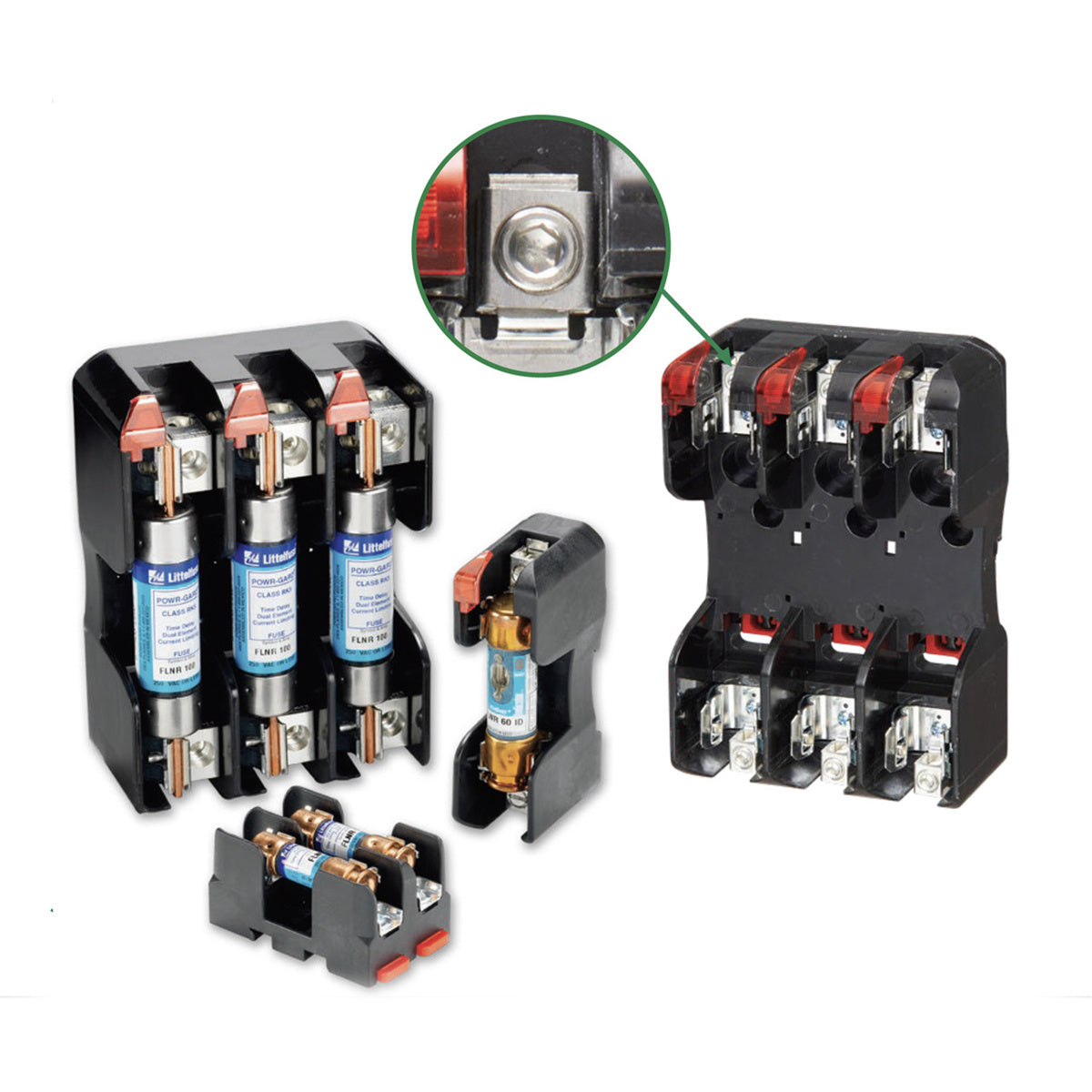

Littelfuse LFR60060-3CID Fuse Block 600V Class R 60A 3 Pole

Product Description

The Littelfuse LFR60060-3CID is a three-pole fuse block rated for 600 volts and 60 amps. This Class R fuse block features universal mounting holes making installation straightforward. Its design allows only Class R fuses to be used, enhancing safety and compatibility.

• Compatible with various fuse series including FLSR and KLSR.
• Constructed using thermoplastic material for durability.
• DIN rail mountable for easy installation.

Product Highlights

The Littelfuse LFR series offers significant advantages over prior generations, including a robust build and streamlined user experience.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: LFR60060-3CID

Technical Specifications

• Amperage Rating: 60 A
• Class: R
• Connection Type: Box Lug
• Dimensions: 7.25 inches L x 4.25 inches W x 2.35 inches H
• Fuse Diameter: 0.81 inches
• Fuse Length: 3 inches
• Material: Thermoplastic
• Mounting Type: DIN Rail
• Number of Poles: 3
• Series: LFR
• Suitable For Use With: FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse
• Temperature Rating: 130 degrees C
• Type: Indicating
• Voltage Rating: 600 VAC
• Wire Size: 14 to 6 AWG
