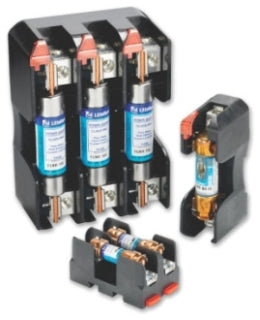

Littelfuse LFR60030-2CID Indicating Fuse Block 600V Class R Block 30A 2 Pole

Product Description

Littelfuse POWR-GARD LFR60030-2CID is an indicating fuse block with a voltage rating of six hundred volts and an amperage rating of thirty amps. This fuse block features two poles and a Class R designation. It is designed for use with 14 to 10 AWG wire and is suitable for DIN rail mounting. The product dimensions are six point five six inches in length, two point eight eight inches in width, and two point zero seven inches in height. The fuse length is two inches with a diameter of zero point five six three inches. The maximum temperature rating is one hundred thirty degrees Celsius.

• Universal mounting holes for easy replacement
• One hand release from DIN rail for ferrule style fuses
• Lead (Pb) free

Product Highlights

This fuse block is ideal for applications needing reliable electrical contact and minimal heat rise. It is designed to meet various electrical standards for safety and compliance.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Manufacturer Part Number: LFR60030-2CID

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Class: R
• Connection Type: Box Lug
• Fuse Length: 2 in
• Fuse Diameter: 0.563 in
• Material: Thermoplastic
• Number of Poles: 2
• Temperature Rating: 130 deg C
• Dimensions: 6.56 in L x 2.88 in W x 2.07 in H
• Suitable For Use With: FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse
• Standards/Approvals: RoHS Compliant, UL Listed, CSA Certified
