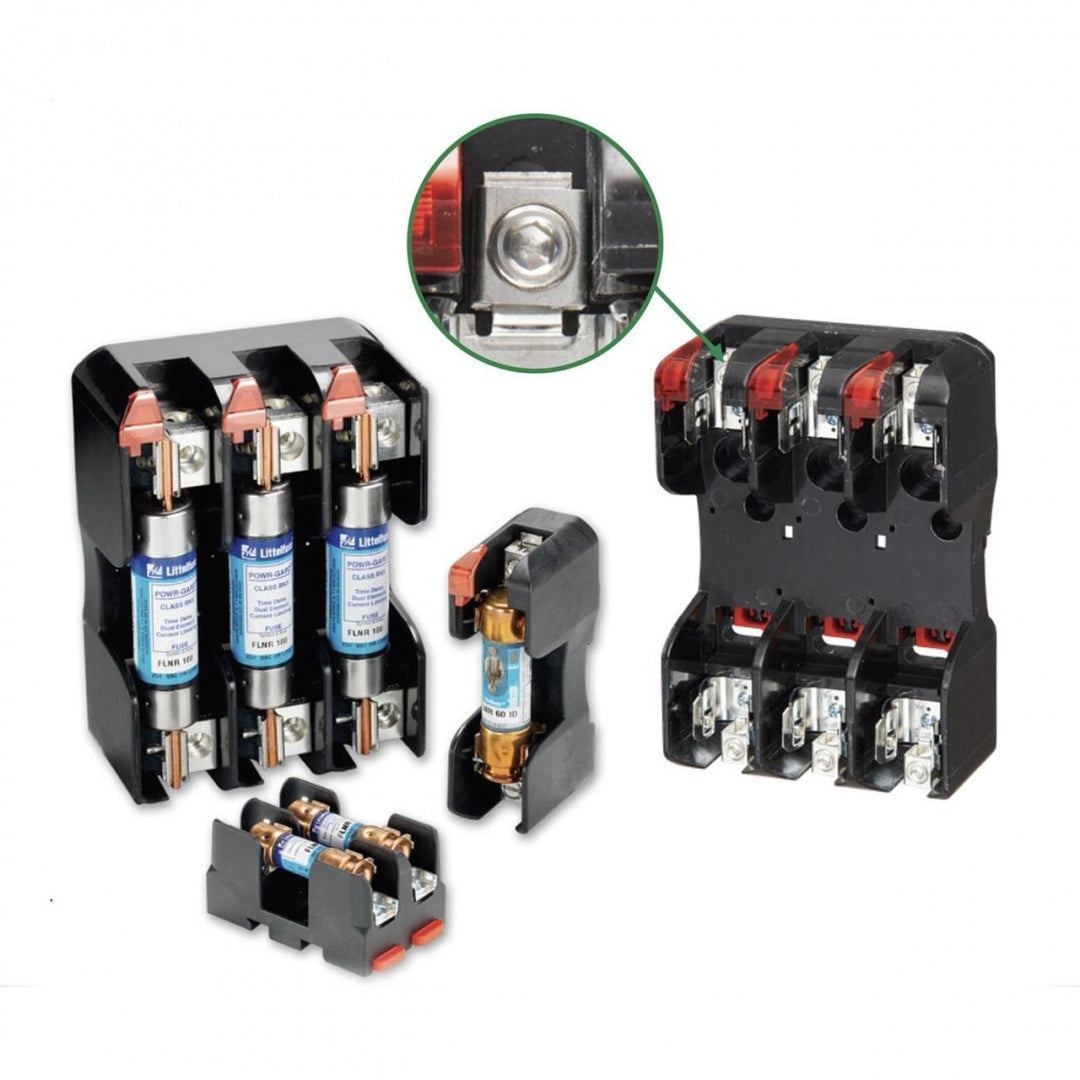

LITTELFUSE LFR60030-1SID 600V Class R Block 30A 1 Pole

Product Description

LITTELFUSE LFR60030-1SID is a fuse block designed for reliable performance in electrical systems. This product operates at 600 volts and has a rating of thirty amperes, suitable for one pole applications. The fuse is part of LITTELFUSE’s POWR-GARD series, offering robust functionality for various fuse types.

• Operates at 600 VAC and 30 A
• Compatible with FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID, and IDSR series fuses
• Features screw connection type with bolt-in and DIN rail mounting options

Product Highlights

The LFR60030-1SID fuse block provides indication on most versions and features a design that makes it easy to install and replace. It can handle wire sizes from fourteen to six AWG copper and operates at a maximum temperature of one hundred thirty degrees Celsius.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• Series: LFR

Technical Specifications

• Amperage Rating: 30 A
• Fuse Diameter: 0.563 inches
• Fuse Length: 2 inches
• Connection Type: Screw
• Mounting Type: Bolt-In/DIN Rail
• Dimensions: 6.56 inches H x 1.51 inches W x 2.07 inches D
• Temperature Rating: 130 degrees Celsius
• Suitable For Use With: FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR series fuses
• Voltage Rating: 600 VAC
