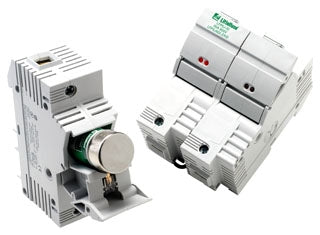

Littelfuse LFPSJ30-3 600V Class J Dead Front Holder 30A 3P

Product Description

Littelfuse LFPSJ30-3 is a 600 voltage Class J dead front holder designed for optimal performance in electrical applications. This fuse holder is suitable for use with JTD, JTD-ID, and JLS Series Class J fuses. It supports wire sizes from eighteen to one AWG and features a three-pole configuration.

• UL Listed and CSA certified for safety
• Easy installation without extra tools
• Small compact design for flexibility in tight spaces

Product Highlights

This product offers a high interrupting rating of two hundred kA, suitable for protecting electrical systems and ensuring safety.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: LFPSJ30-3

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/VDC
• Mounting Type: DIN Rail
• Number of Poles: 3
• Connection Type: Pressure Plate
• Material: Thermoplastic
• Dimensions: 4.606 inches H x 4.251 inches W x 2.838 inches D
• Standards/Approvals: UL File No. E14721, CSA 2529839
