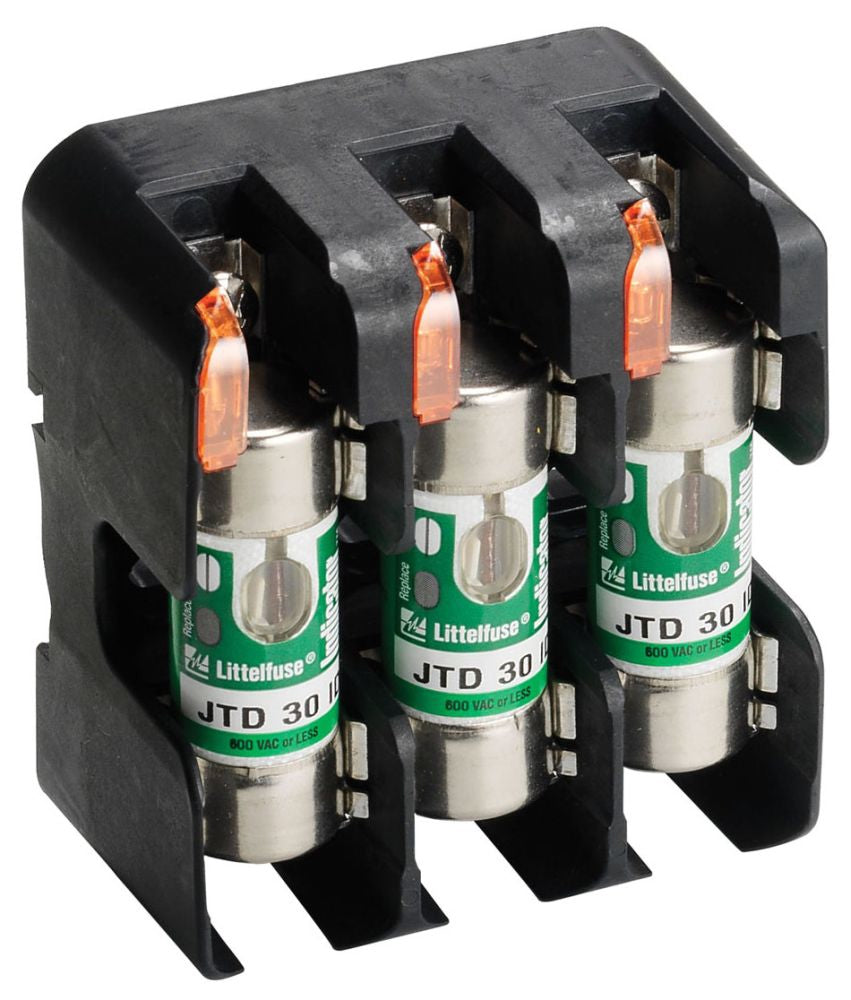

Littelfuse LFJ600603CID 3-Pole 60 Amp 600 VAC Class J Fuse Block

Product Description

The Littelfuse LFJ600603CID is a 3-pole, 60 amp, 600 volt AC class J fuse block designed for reliable power management. This fuse block features a space-saving design, making it up to forty-five percent smaller than previous models. It includes indicators for operational clarity and snap-to-release DIN rail mounting for efficient installation.

• Compatible with 14 to 6 AWG wire
• UL Listed and CSA Certified
• Universal mounting holes for easy replacement

Product Highlights

This fuse block is ideal for use in various electrical applications where compact design and robust performance are required.

Product Information

Standard Information

• Catalog Number: LFJ60060-3CID
• Manufacturer: Littelfuse
• Voltage Rating: 600 VAC
• Amperage Rating: 60 A
• Type: Class J Fuseblock
• Country of Origin: China

Technical Specifications

• Dimensions: 3.97 in L x 4.72 in W x 2.24 in H
• Fuse Length: 2.374 in
• Fuse Diameter: 1.06 in
• Connection Type: Box Lug
• Temperature Rating: 125 deg C
• Clip Type: Spring Reinforced
