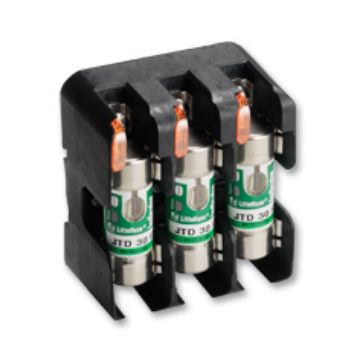

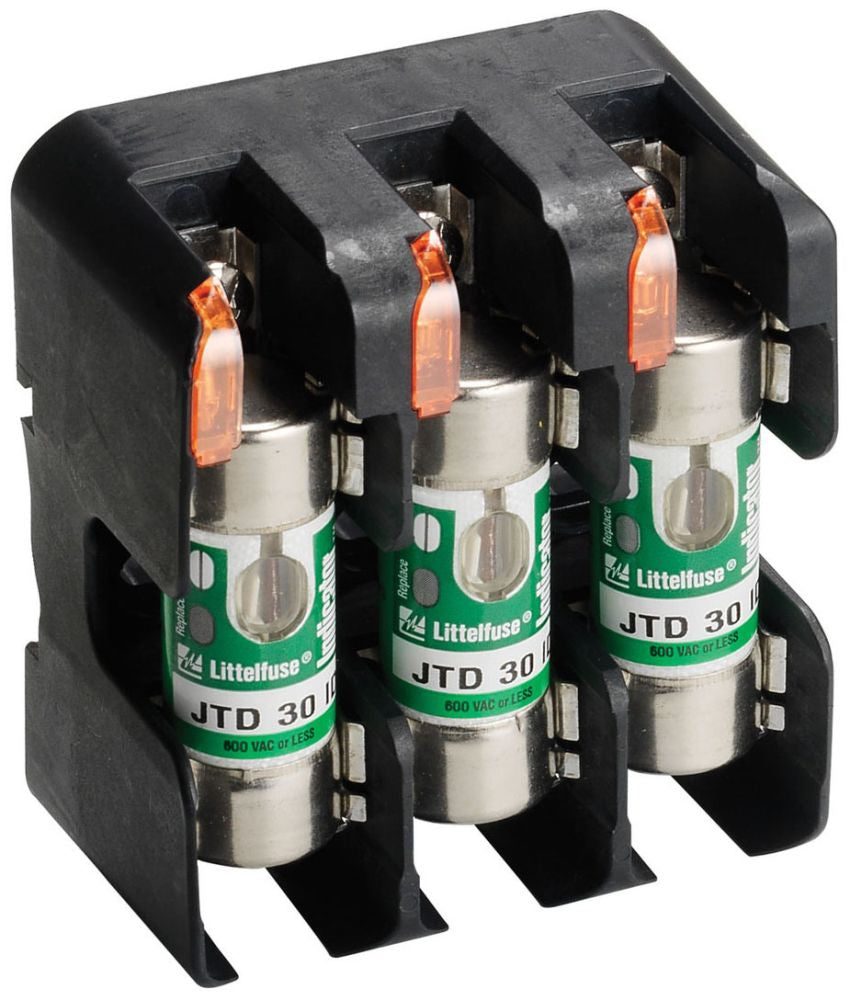

Littelfuse LFJ60060-2CID Indicating Fuse Block 600 VAC 60 A Class J 4 to 2 AWG 14 to 6 AWG Wire

Product Description

The Littelfuse LFJ60060-2CID is a reliable indicating fuse block designed for various electrical applications. It supports a voltage rating of six hundred volts alternating current (VAC) and an amperage rating of sixty amps. This fuse block is ideal for class J fuses and accommodates wire sizes from four to two American wire gauge (AWG) and fourteen to six AWG. The unit is suitable for use with JTD_ID and JTD series time delay fuses and JLS fast-acting fuses.

• Space-saving design is up to forty-five percent smaller.
• Universal mounting holes make replacement easy.
• Features one-hand release from DIN rail for ferrule style fuses.

Product Highlights

The Littelfuse LFJ60060-2CID ensures ease of installation and maintenance. The construction includes reinforced fuse clips and compatibility with many commonly used fuses.

Product Information

Standard Information

• Brand: Littelfuse
• Type: Indicating

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 60 A
• Fuse Length: 2.374 in
• Fuse Diameter: 1.06 in
• Dimensions: 3.97 in L x 3.2 in W x 2.24 in H
• Connection Type: Box Lug
• Number of Poles: 2
• Temperature Rating: 125 deg C
• Material: Thermoplastic
• Mounting Type: DIN Rail
• Suitable For Use With: JTD_ID, JTD Series Time Delay Fuse and JLS Fast Acting Fuse
• Standards: UL Listed, CSA Certified, PROP65 Warning
