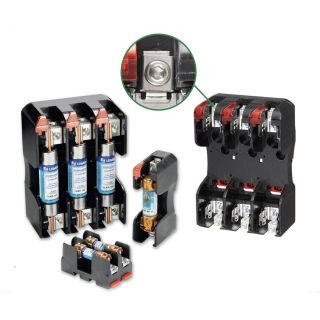

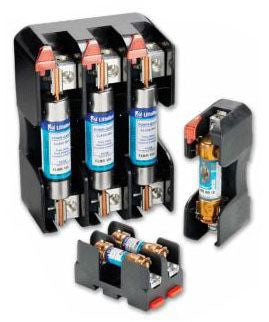

Littelfuse LFH25200-1C Fuse Block 250 VAC 200 A 1 Pole

Product Description

The Littelfuse LFH25200-1C Fuse Block is designed for use in motor control and load protection applications. It supports a maximum voltage of 250 VAC and a current rating of 200 A. This fuse block is suitable for class H fuses, using wire sizes from six AWG to two hundred fifty kcmil. It is designed for DIN rail mounting and is made from durable thermoplastic material, ensuring longevity under various operating conditions.

• Box lug connection type for secure wiring.
• Compatible with NLN series fuse.
• Rated for a temperature of one hundred thirty degrees Celsius.

Product Highlights

This fuse block features universal mounting holes and a design that allows for quick and easy replacement. It also includes reinforced fuse clips for improved electrical contact and minimized heat rise.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: LFH25200-1C

Technical Specifications

• Class: H
• Series: LFH
• Material: Thermoplastic
• Wire Size: 6 AWG to 250 kcmil
• Dimensions: 7.13 in L x 3 in W x 2.85 in H
• Mounting Type: DIN Rail
• Voltage Rating: 250 VAC
• Amperage Rating: 200 A
• Connection Type: Box Lug
• Number of Poles: 1
• Country of Origin: CN
• Temperature Rating: 130 deg C
• Suitable for Use With: NLN Series Fuse
