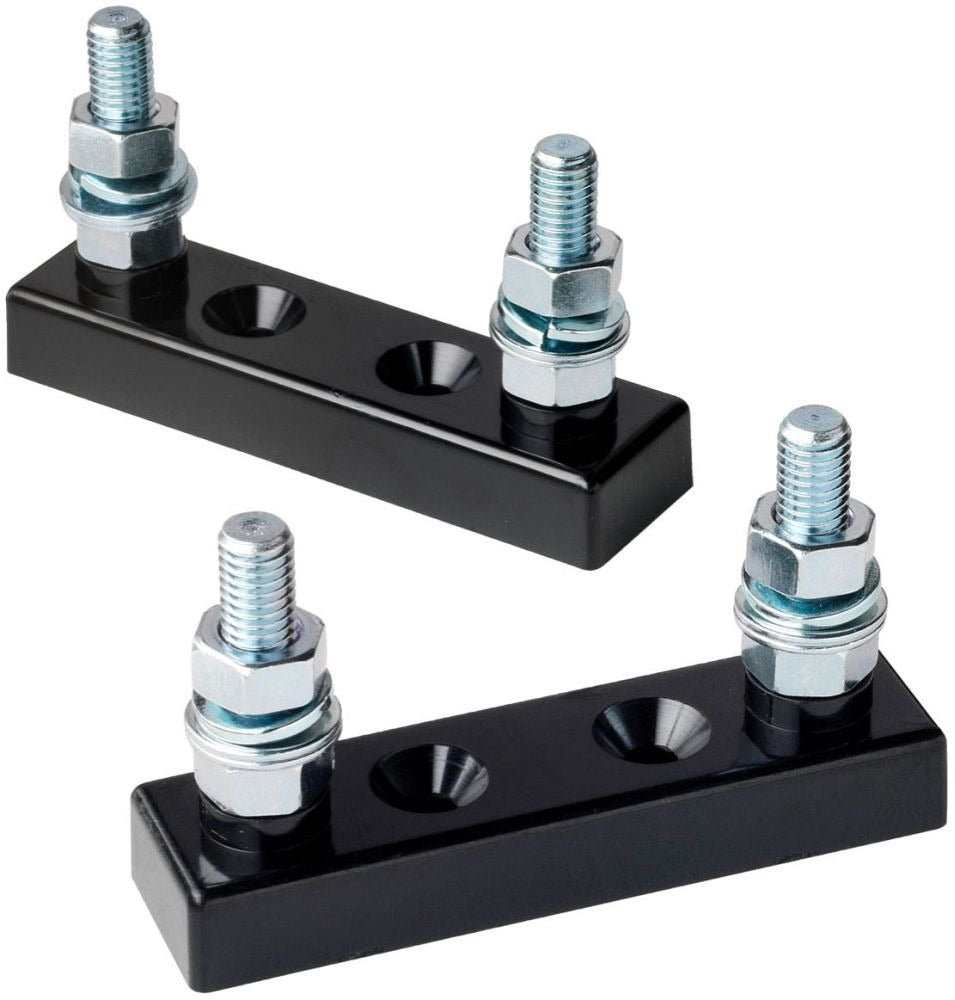

Littelfuse LFFB003 Forklift Fuse Block 800 A (1 Pole)

Product Description

The Littelfuse LFFB003 is a single-pole fuse block designed to accept bolt-down limiter fuses for low-voltage battery equipment such as forklifts and golf carts. It is rated 150 VAC/VDC and 800 A, features a thermoplastic base with steel zinc-plated studs and M8 hex nuts, and provides a stud-type connection compatible with HAZGARD, CNL and CNN limiter fuses.

• Electrical rating: 150 VAC/VDC, 800 A; single-pole stud connection
• Thermoplastic body with steel zinc-plated studs and M8 hex nuts; 1.25 mm thread pitch
• Bolt-in mounting; compatible with HAZGARD, CNL and CNN limiter fuses; dimensions 3.4 in L x 0.94 in W x 1.935 in H

Product Highlights

Forklift-style limiter fuse block, 150 VAC/VDC, 800 A, stud terminal, UL listed

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: LFFB003
• Country of Origin: China

Technical Specifications

• Brand: Littelfuse
• MPN: LFFB003
• Series: LFFB
• Product Type: Limiter style fuse block
• Suitable For Use With: Bolt-down limiter fuses
• Compatible Fuse Styles: HAZGARD, CNL, CNN
• Voltage Rating: 150 VAC/VDC
• Amperage Rating: 800 A
• Number of Poles: 1
• Connection Type: Stud
• Mounting Type: Bolt-In
• Base Material: Thermoplastic
• Stud Material: Steel, zinc-plated
• Hex Nut Size: M8
• Thread Pitch: 1.25 mm
• Dimensions: 3.4 in L x 0.94 in W x 1.935 in H
• Certifications: UL Listed (File E14721); CE certified; RoHS compliant
• Country of Origin: China
