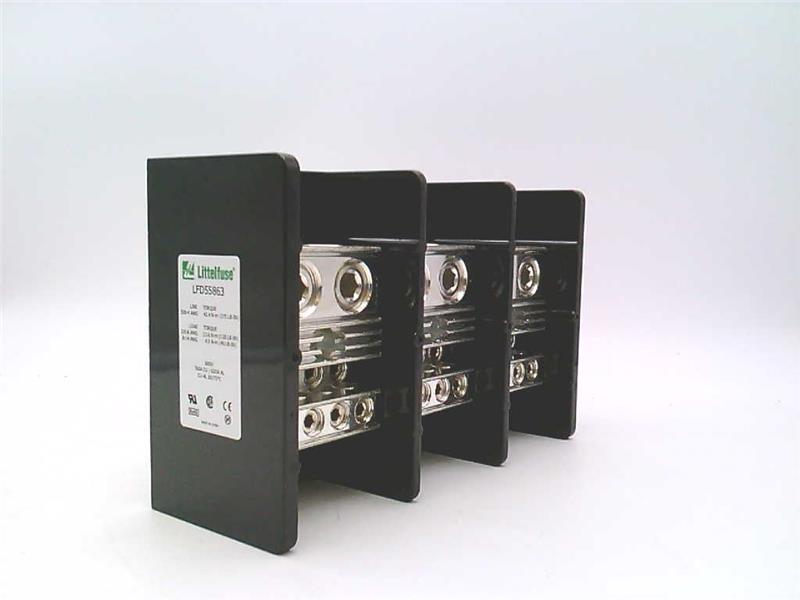

Littelfuse LFD5586-3 Distribution Block 760A 3 Pole Line 2 Load 8

LITTELFUSE
Brand: LITTELFUSE
SKU: LFD5586-3
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Littelfuse LFD5586-3 is a distribution block designed to manage power distribution efficiently. This device is suitable for applications where power needs to be distributed to multiple loads. The block supports a voltage rating of six hundred volts alternating current and accommodates a maximum amperage of seven hundred sixty amps.

  • Three pole configuration
  • Two primary and eight secondary connections
  • UL recognized and CSA certified

Product Highlights

This distribution block features a thermoplastic construction, providing durability and environmental resistance. It is ideal for use in a variety of electrical systems requiring reliable power distribution.

Product Information

Standard Information

  • Catalog Number: LFD5586-3
  • Manufacturer: Littelfuse
Technical Specifications
Amperage Rating
760 A
Voltage Rating
600 VAC
Number of Poles
3
Primary Connections per Pole
2
Secondary Connections per Pole
8
Dimensions
5.38 inches L x 3.38 inches W x 2.9 inches H
Wire Size
4 AWG to 500 kcmil
Short Circuit Current Rating
200 kA
Material
Thermoplastic
Series
LD Series
