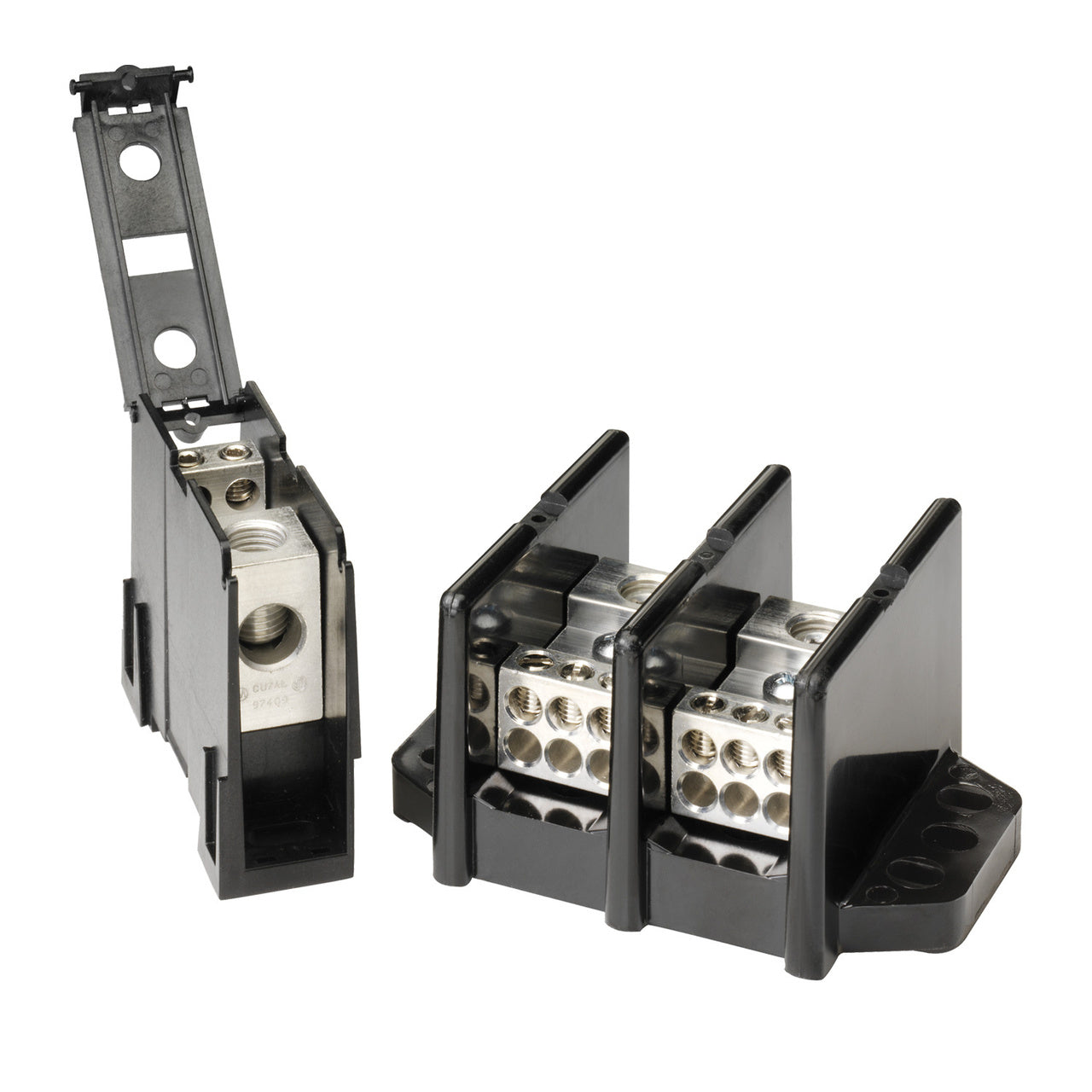

Littelfuse LFD3555-3 Distribution Block 600V 350A 3 Pole Line 2 Load 6

Product Description

The Littelfuse LFD3555-3 is a power distribution block designed for effective distribution in electrical systems. This block supports up to 350 amperes and operates at a voltage of six hundred volts. It organizes multiple connections securely in a compact design, making it efficient for various applications.

• UL Recognized and CSA Certified
• Features bolt-in mount for easy installation
• Supports 14 to 2/0 AWG input and 14 to 4 AWG output wiring

Product Highlights

The Littelfuse LFD3555-3 is ideal for applications in heating, air conditioning, and refrigeration systems, as well as material handling equipment and control panels.

Product Information

Standard Information

• Catalog Number: LFD3555-3
• Manufacturer: Littelfuse

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 350 A
• Number of Poles: 3
• Dimensions: 1 inch H x 1 inch W x 2 inches D
• Material: Phenolic/Thermoplastic
• Primary Connections: 2 per pole
• Secondary Connections: 6 per pole
• Application: Anywhere power needs to be distributed to more than one load
• Standards/Approvals: UL Listed, CSA Certified
