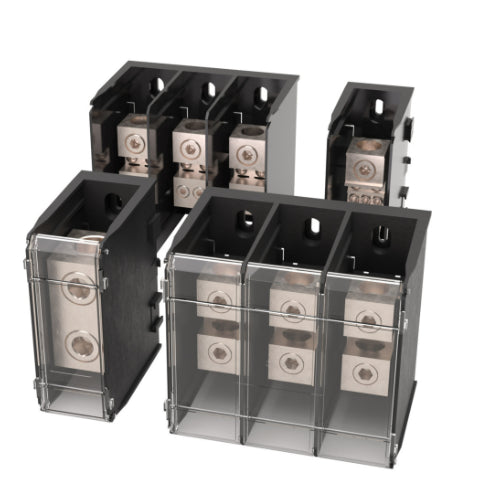

Littelfuse LFD3552-3 Power Distribution Block 600V 380A 3 Pole Replacement 0LD35523Z

Product Description

The Littelfuse Power Distribution Block, model LFD3552-3, delivers reliable power distribution. This device is designed for systems requiring multiple loads with a voltage rating of six hundred volts and an amperage capacity of three hundred eighty amps.

• Three pole configuration with one primary and four secondary connections
• Compatible with wire sizes from six AWG to five hundred kcmil, as well as fourteen to two AWG
• UL recognized and CSA certified for safety standards

Product Highlights

Ideal for HVAC, elevator systems, and motor control applications, this block ensures effective power distribution across multiple loads.

Product Information

Standard Information

• Catalog Number: LFD3552-3
• Manufacturer: Littelfuse
• Country of Origin: China

Technical Specifications

• Amperage Rating: 380 A
• Voltage Rating: 600 VAC
• Short Circuit Current Rating: 200 kA
• Dimensions: 4 inches high x 5 inches wide x 2.61 inches deep
• Fuse Type: Class J/T/RK1/RK5/G/CC
• Material: Thermoplastic
• Number of Poles: 3
• Primary Connections/Pole: 1
• Secondary Connection/Pole: 4
• Series: LD Series
