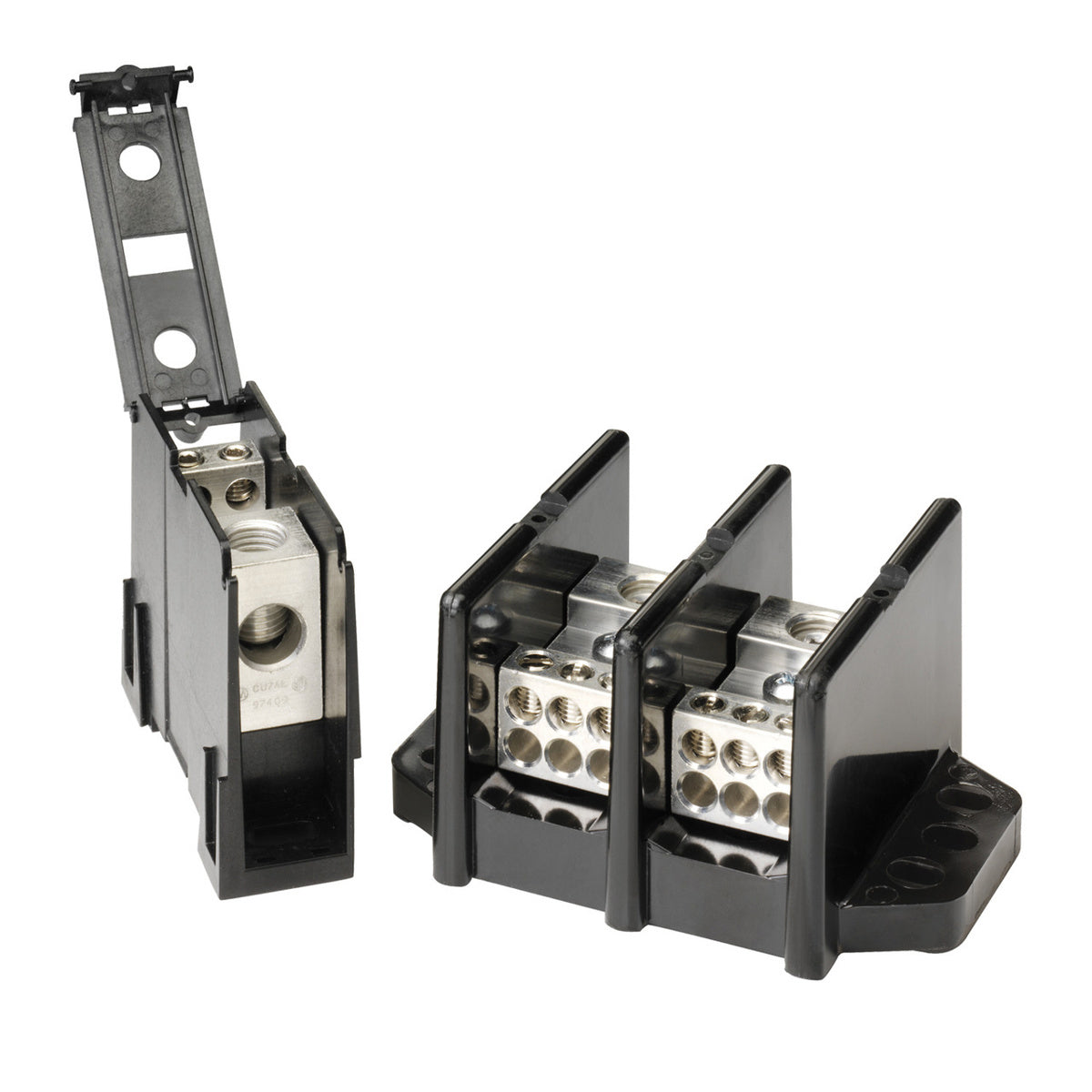

Littelfuse LFD1400-3 POWR-BLOKS Power Distribution Block

Product Description

The Littelfuse LFD1400-3 is a power distribution block designed for safe and efficient power management. This product facilitates the connection of primary power to multiple loads. The POWR-BLOKS series includes a DIN-rail mount and supports secondary circuit splitting.

• Designed for 600 VAC and 115 A applications
• Features three poles with one primary and four secondary connections
• Made from durable thermoplastic to ensure long-lasting use

Product Highlights

The Littelfuse LFD1400-3 is ideal for situations where power needs to be redistributed to various circuits. It is easy to install and compatible with wire sizes ranging from fourteen to two-aught AWG.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Sub Brand: POWR-BLOKS

Technical Specifications

• Catalog Number: LFD1400-3
• Voltage Rating: 600 VAC
• Amperage Rating: 115 A
• Number of Poles: 3
• Primary Connections/Pole: 1
• Secondary Connections/Pole: 4
• Wire Size: 14 to 2/0 AWG
• Short Circuit Current Rating: 200 kA
• Material: Thermoplastic
• Dimensions: 5.38 in L x 3.38 in W x 2.9 in H
