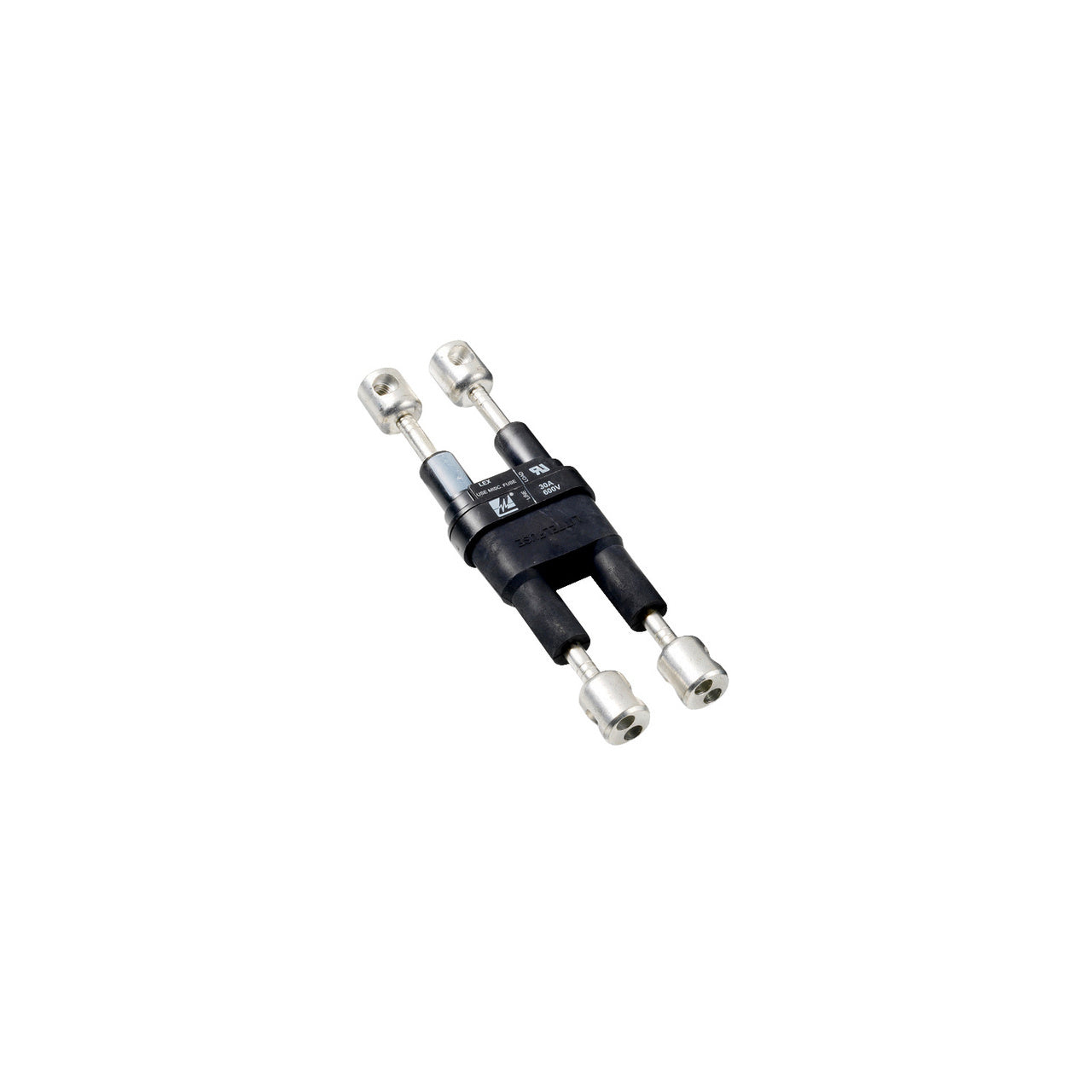

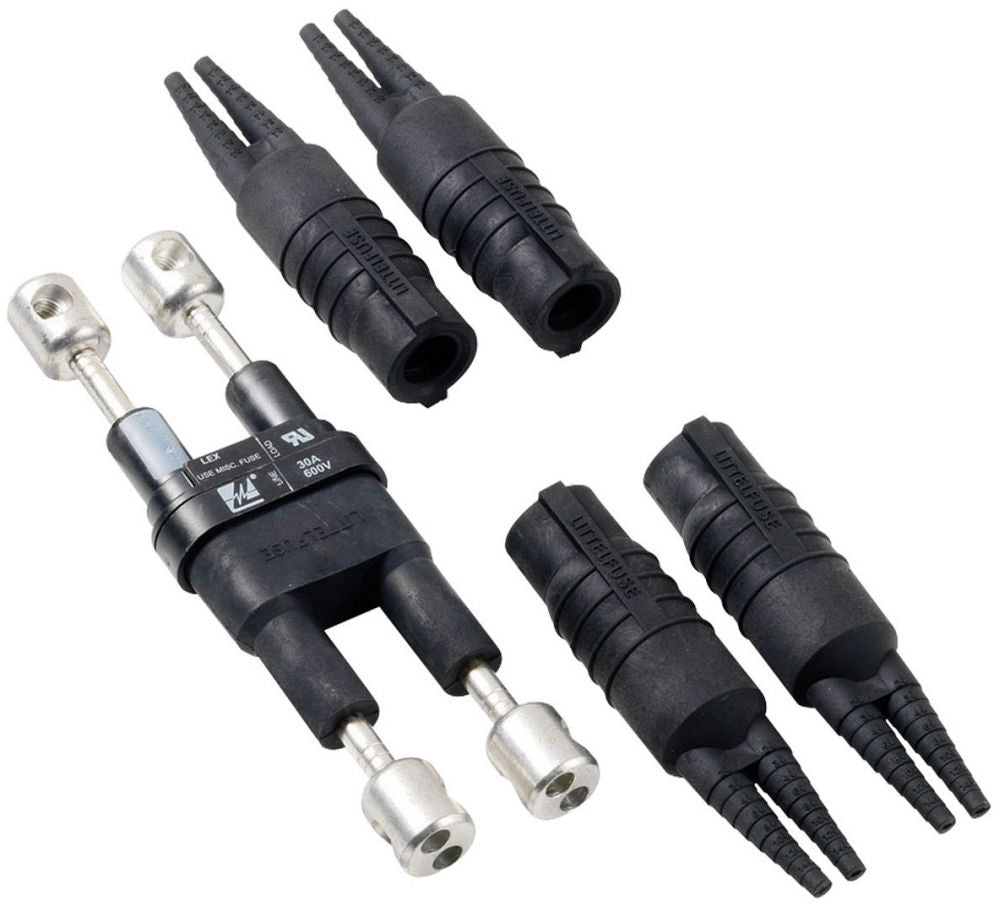

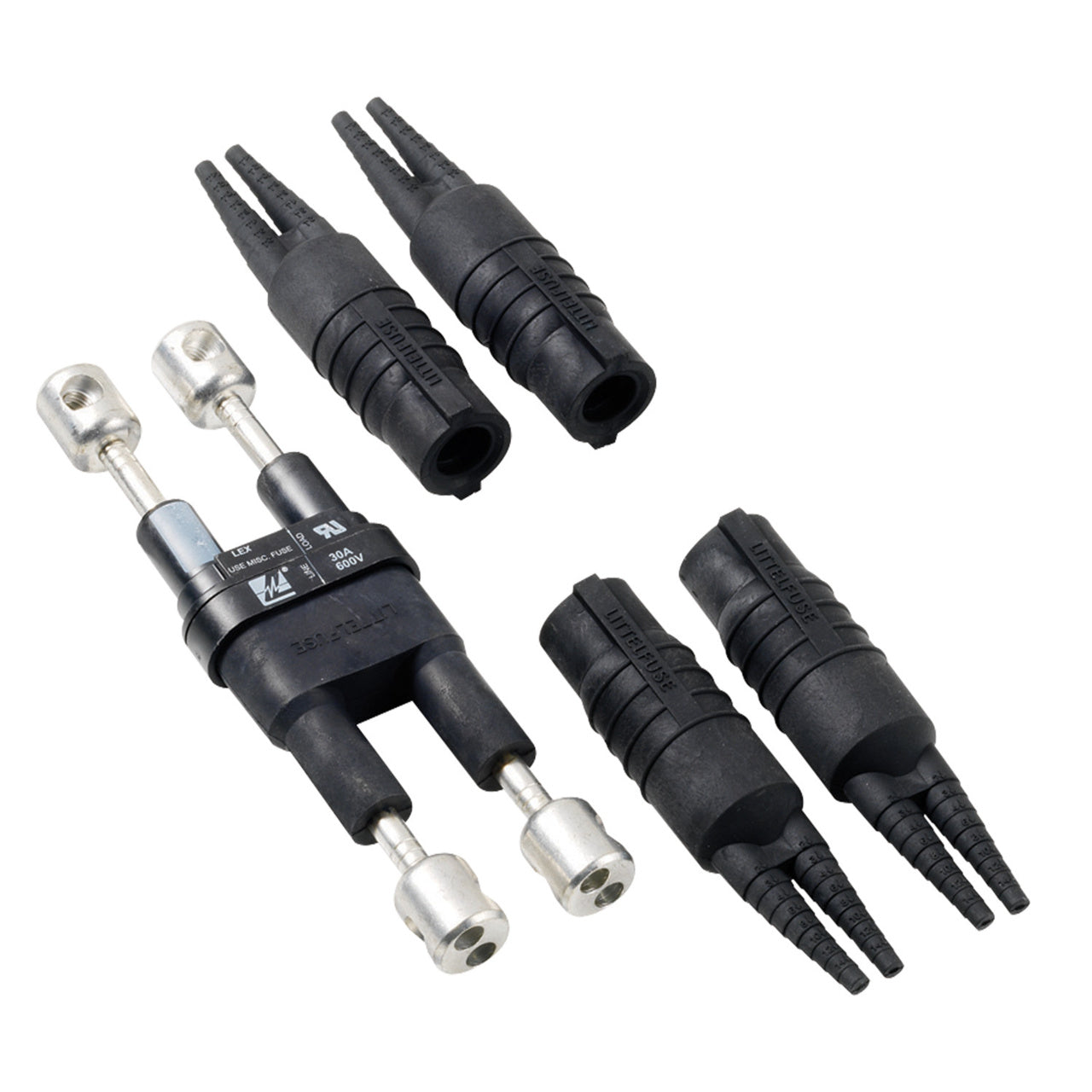

Littelfuse LEXAAS Double Pole Watertight Inline Fuse Holder 600 VAC/VDC 30 A (1-1/2 in) HEX-AA

Product Description

The Littelfuse LEXAAS is a 2-pole watertight fuse holder rated 600 VAC/VDC and 30 A designed for high-humidity and corrosive environments. This panel-mount in-line model accepts 1-1/2 in (13/32 in diameter) midget or Class CC fuses, uses crimped connections, and accommodates 12 to 8 AWG conductors. The construction meets IP67 touch-safe standards and includes fiberglass/FRP housing with copper terminals for outdoor circuit protection.

• Rated 600 VAC/VDC, 30 A; accepts 1-1/2 in fuses (13/32 in diameter); 2-pole configuration
• Crimped connections for 12 to 8 AWG conductors (line/load) with copper terminals
• Watertight construction with internal O-ring; meets IP67 touch-safe standards and UL/CSA approvals

Product Highlights

2-pole watertight fuse holder, 600 V, 30 A, panel-mount/in-line, accepts 1-1/2 in midget/Class CC fuses

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: LEXAAS
• Country of Origin: Mexico

Technical Specifications

• Brand: Littelfuse
• MPN: LEXAAS
• Type: Watertight fuse holder
• Number of Poles: 2
• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 30 A
• Fuse Length: 1-1/2 in
• Fuse Diameter: 13/32 in
• Fuse Type: Midget / Class CC (compatible with CCMR, KLDR, KLKR; BLF, BLN, FLM, FLQ, KLK, KLKD)
• Mounting Type: Panel / In-line
• Connection Type: Crimped (line/load)
• Wire Size: 12 to 8 AWG (line); 12 AWG (second pole/load where applicable)
• Material: Fiberglass / fiberglass-reinforced polymer
• Terminal Material: Copper
• Dimensions: 5.3 in L
• Enclosure Rating: IP67 (touch-safe)
• Approvals/Certifications: UL 4248 (UL Recognized), CSA C22.2, CE
• Construction Feature: Watertight with internal O-ring seal
• Typical Applications: High-humidity and corrosive environments; outdoor circuit protection, street/parking/sports lighting, outdoor signs, boat circuits, tractors/yard equipment
• Country of Origin: Mexico
• Cross Reference / Replacement MPN: HEX-AA
