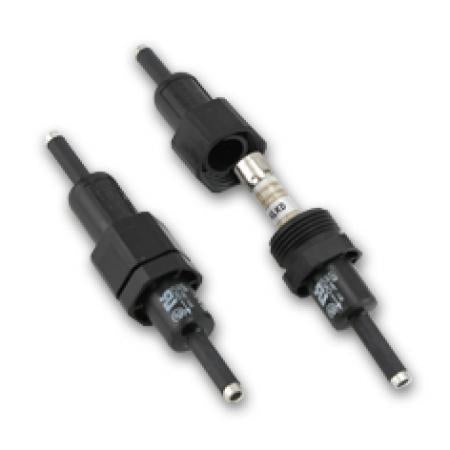

LITTELFUSE LEBDD 1-Pole Watertight Inline Fuseholder with Crimp Terminals

Product Description

The Littelfuse LEBDD is a 1-pole watertight inline fuseholder designed for reliable circuit protection. This fuseholder accommodates a voltage of six hundred VAC/VDC and an amperage rating of thirty A. It features a crimp line/load terminal connection for secure installation and is compatible with several fuse types.

• Watertight design with an internal O-ring for enhanced protection.
• Break-resistant fiberglass body that withstands impacts.
• Flexible terminations compatible with various wire sizes.

Product Highlights

This product increases safety and efficiency by allowing individual device disconnection.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: Non-Indicating Watertight

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/VDC
• Class: CC
• Dimensions: 4-1/2 in L
• Fuse Diameter: 1-1/2 in
• Fuse Length: 13/32 in
• Wire Size: 6 AWG, 2 AWG
• Manufacturer: Littelfuse
• Suitable For Use With: CCMR, KLDR, KLKR Series Class CC and BLF, BLN, FLM, FLQ, KLK, KLKD Series Midget Fuse
