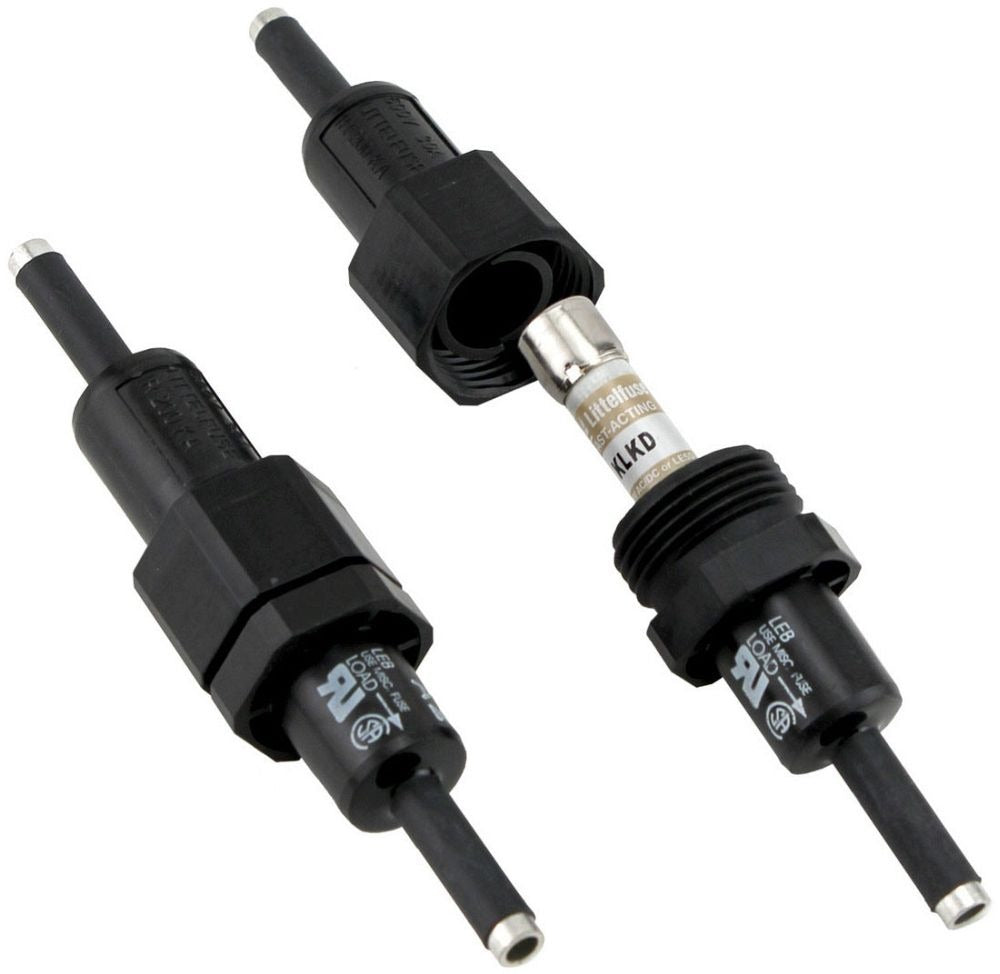

Littelfuse LEBAASK Breakaway watertight fuse holder 600 VAC/VDC (1-1/2 in, 1 pole)

Product Description

The Littelfuse LEBAASK is a breakaway watertight in-line midget fuse holder rated 600 VAC/VDC and 30 A. It accepts 1-1/2 inch midget fuses (13/32 inch diameter) and accommodates 12 to 8 AWG conductors with crimp connections. The single-pole LEB series holder features a fiberglass-reinforced polymer body, internal O-ring seal, and ultrasonically welded copper terminals, meeting IP67 touch-safe standards for outdoor and marine circuit protection.

• Rated 600 VAC/VDC and 30 A; accepts 1-1/2 in midget fuses (13/32 in diameter) and fits 12 to 8 AWG conductors with crimp terminations.
• Fiberglass-reinforced polymer body with internal O-ring and ultrasonically welded copper terminals for watertight inline connections.
• Single-pole LEB series holder meets IP67 touch-safe standards; UL recognized per UL 4248 and CSA certified per C22.2 No.39 for outdoor and marine applications.

Product Highlights

In-line breakaway midget fuse holder; 600 VAC/VDC, 30 A; accepts 1-1/2 in fuses; 12–8 AWG; IP67; UL recognized; CSA certified.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: LEBAASK
• Country of Origin: Mexico

Technical Specifications

• Brand: Littelfuse
• MPN: LEBAASK
• Type: Breakaway watertight fuse holder
• Series: LEB
• Class: CC
• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 30 A
• Wire Size: 12 to 8 AWG
• Connection Type: Crimp
• Number of Poles: 1
• Mounting Type: In-Line
• Body Material: Fiberglass-reinforced polymer
• Terminal Material: Copper
• Terminal Construction: Ultrasonically welded terminals
• Fuse Length: 1-1/2 in
• Fuse Diameter: 13/32 in
• Suitable For Use With: CCMR, KLDR, KLKR, BLF, BLN, FLM, FLQ, KLK, KLKD series midget fuses
• IP Rating: IP67 (touch-safe)
• Standards: UL recognized per UL 4248 (File No.: E14721); CSA certified per C22.2 No.39 (File No.: LR7316); RoHS compliant; PROP65: may expose to nickel
• Country of Origin: Mexico
• Applications: Street lighting, parking lot and sports lighting, outdoor signage, marine circuits, tractors/yard equipment, general outdoor circuit protection
