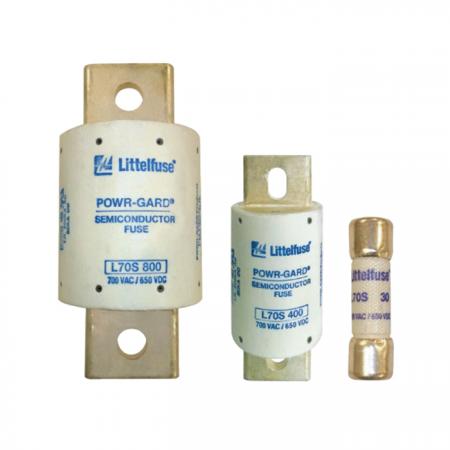

LITTELFUSE L70S800 VERY FAST-ACTING SEMICONDUCTOR FUSE 800 A

Product Description

The LITTELFUSE L70S800 is a very fast-acting semiconductor fuse designed to protect electrical circuits from overload and short circuits. It operates at a current rating of eight hundred amperes and supports voltage ratings of seven hundred volts AC and six hundred fifty volts DC. Its compact round body measures two and seven eighths inches in diameter and six and thirteen sixteenths inches in length.

• Extremely current-limiting
• Low watts loss
• Controlled transient over voltages

Product Highlights

The L70S800 is ideal for various applications, including AC and DC drives, DC common bus protection, power converters, and UPS systems. Its bolted-down terminal design ensures a secure connection.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• MPN: L70S800

Technical Specifications

• Amperage Rating: 800 A
• Voltage Rating: 700 VAC/650 VDC
• Interrupt Rating: 200/20 kA
• Body Size: 2-7/8 in Dia x 6-13/16 in L
• Body Type: Round
• Indicating/Non-Indicating: Non-Indicating
• Material: Melamine
• Mounting Type: Bolt
• Terminal Type: Bolted-Down
• Series: L70S
• Type: Very Fast Acting High Speed
