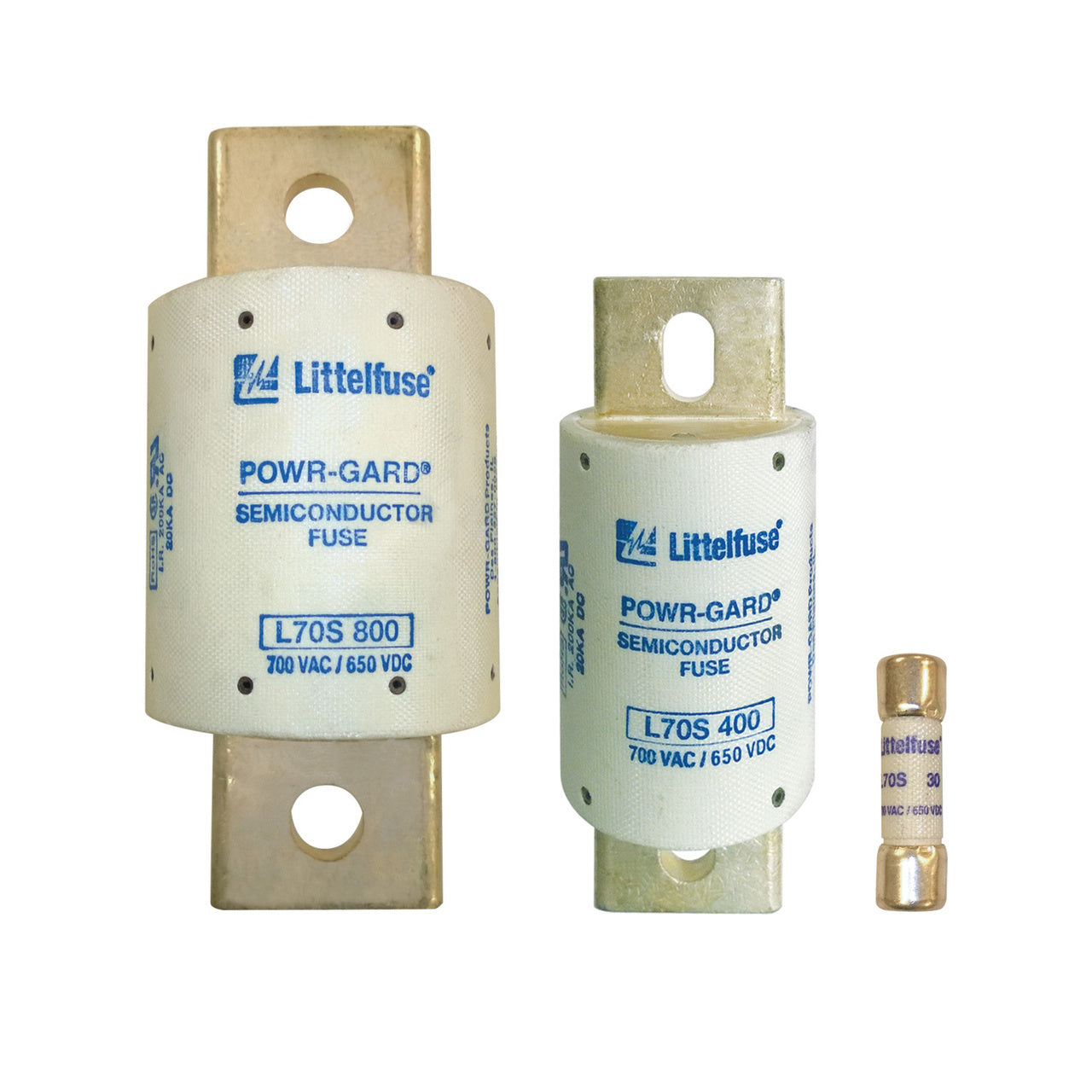

Littelfuse L70S150 Very Fast Acting Semiconductor Fuse

Product Description

The Littelfuse L70S150 is a very fast-acting semiconductor fuse designed to protect sensitive electrical equipment. This fuse is part of the L70S series, which utilizes advanced technology for improved reliability and efficiency. With an amperage rating of one hundred fifty amps, this fuse operates at a voltage rating of seven hundred volts alternating current or six hundred fifty volts direct current.

• Very fast acting for quick response
• Designed for semiconductor protection
• UL Recognized for safety and performance

Product Highlights

The Littelfuse L70S150 is built to meet high standards with its non-indicating design and impressive interrupt rating. Its round body and bolted-down terminal type facilitate easy installation and fit into various applications including power converters and drives.

Product Information

Standard Information

• Catalog Number: L70S150
• Manufacturer: Littelfuse
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 700 VAC / 650 VDC
• Interrupt Rating: 200 / 20 kA
• Body Size: 1-1/2 in Dia x 5-3/32 in L
• Material: Melamine
• Mounting Type: Stud
• Type: Very Fast Acting High Speed
• Series: L70S
