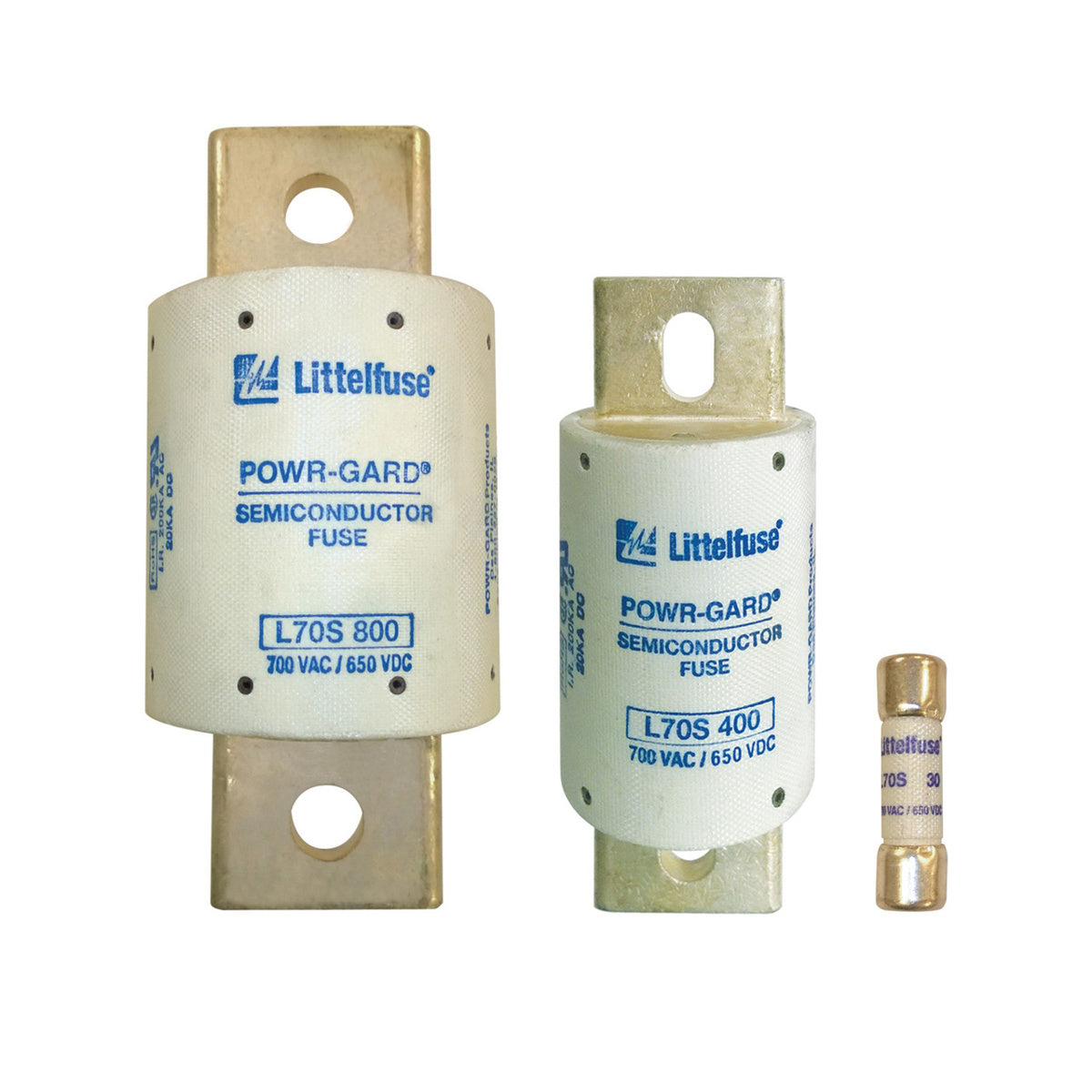

Littelfuse L70S025 Very Fast Acting Semiconductor Fuse

Product Description

The Littelfuse L70S025 is a very fast acting semiconductor fuse designed for the protection of sensitive electronic components in both AC and DC applications. This fuse is part of the innovative L70S series by Littelfuse, known for its advanced technology that enhances quality and reliability.

• Quick response to overloads
• Effective current limiting
• Ideal for DC drives and power converters

Product Highlights

This fuse provides essential protection for semiconductors, ensuring equipment operates within safe electrical parameters.

Product Information

Standard Information

• Catalog Number: L70S025
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 25 A
• Voltage Rating: 700 VAC / 650 VDC
• Interrupt Rating: 200 / 20 kA
• Body Size: 9/16 inch diameter x 2 inches length
• Body Type: Round
• Material: Melamine
• Mounting Type: Stud
• Terminal Type: Bolted-Down
• Special Features: Very-Fast Acting
• Sub Brand: L70S Series
• Country of Origin: Mexico
