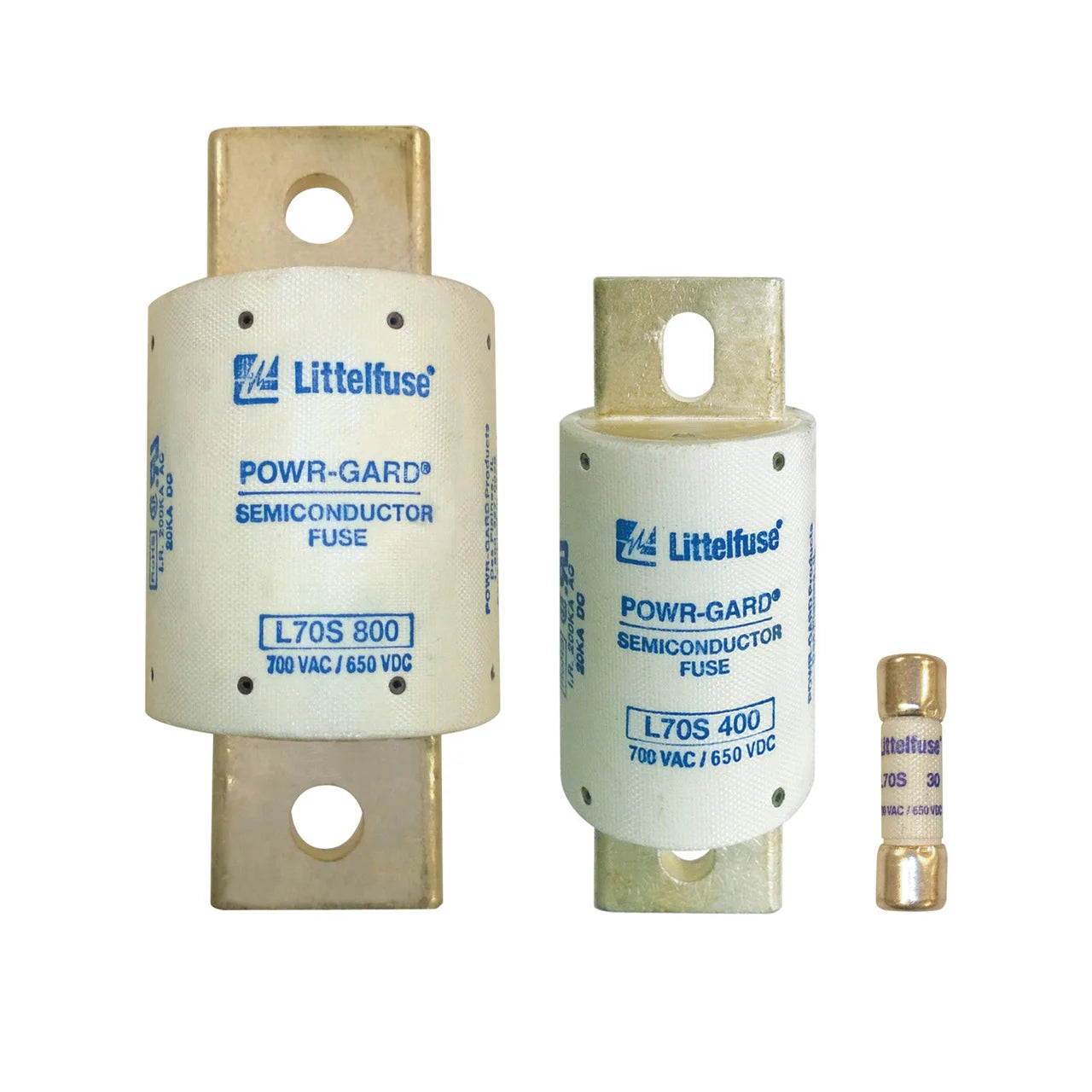

Littelfuse L70S020 Very Fast Acting Semiconductor Fuse 20A 700V

Product Description

The Littelfuse L70S020 is a very fast acting semiconductor fuse with a current rating of twenty amperes and a voltage rating of seven hundred volts. It is designed for use in AC and DC applications to protect sensitive electronic equipment from overloads and short circuits. This fuse utilizes advanced technology developed by Littelfuse to ensure reliable protection for modern systems.

• Current Rating: 20A
• Voltage Rating: 700V AC / 650V DC
• Interrupt Rating: 200kA AC / 20kA DC

Product Highlights

This fuse offers extremely low watt losses, which contributes to less heating and reduced power consumption within circuits. Its very fast acting characteristic means that it effectively limits current during fault conditions, safeguarding circuit components from high transient voltages.

Product Information

Standard Information

• Catalog Number: L70S020
• Sub Brand: L70S Series
• Country of Origin: Mexico
• Application: Protection of Semiconductors

Technical Specifications

• Manufacturer: Littelfuse
• Approval: UL, CSA, CE
• Body Type: Round
• Body Size: 9/16 inch diameter x 2 inches length
• Terminal Type: Ferrule
• Special Features: Very-Fast Acting
