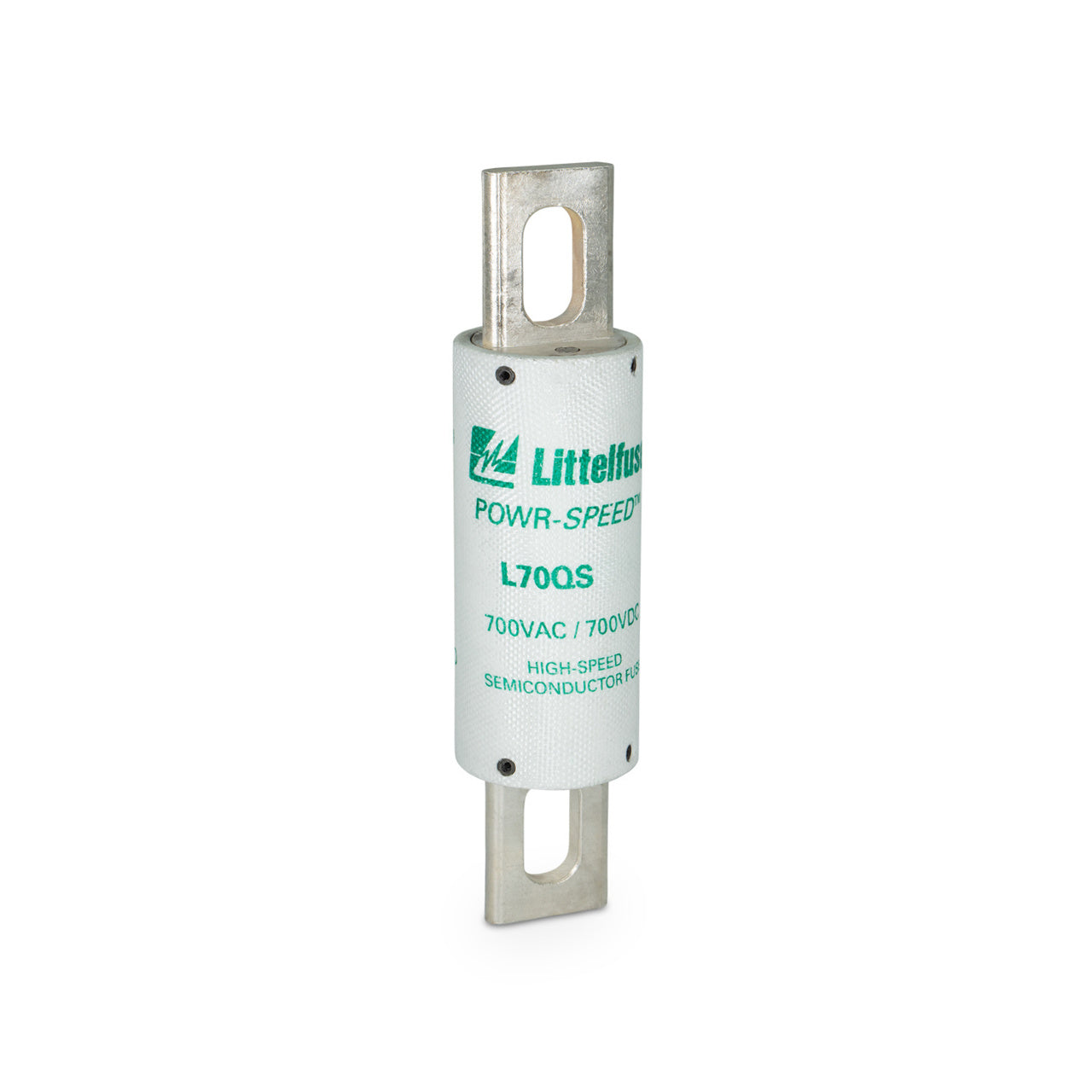

Littelfuse L70QS200 Powr-Speed Round-Body Semiconductor Fuse 200 A 700 V (1.218 in Dia x 5.085 in L)

Product Description

The Littelfuse L70QS200 is a Powr-Speed high-speed semiconductor fuse rated 200 A for 700 VAC/VDC systems. It uses a melamine round cartridge body (1.218 in dia x 5.085 in L) with bolt/direct busbar/stud mounting and Class AR protection. The fuse provides very fast-acting operation (~10 ms), interrupt ratings of 200 kA AC and 50 kA DC, low I2t characteristics, and an operating range of -55 to 125 C for industrial power converter and drive applications.

• 200 A continuous rating for 700 VAC/VDC with 200 kA AC and 50 kA DC interrupt capacity
• Melamine round cartridge body (1.218 in dia x 5.085 in L) with bolt/direct busbar/stud mounting and traditional North American bolted-style package
• Very fast-acting (~10 ms) with low I2t to limit damaging energy; operating temperature -55 to 125 C

Product Highlights

High-speed 200 A semiconductor fuse for 700 V systems; 200 kA AC / 50 kA DC interrupt rating; bolt-in melamine round body with low I2t performance.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: L70QS200
• Country of Origin: United States

Technical Specifications

• Manufacturer: Littelfuse
• Manufacturer Part Number: L70QS200
• Brand: Littelfuse
• Series: L70QS (Powr-Speed)
• Type: Semiconductor fuse (high-speed / very fast-acting)
• Current Rating (Continuous): 200 A
• Voltage Rating: 700 VAC/VDC
• Voltage Rating (AC): 700 V AC
• Voltage Rating (DC): 700 V DC
• Interrupt Rating (AC): 200 kA
• Interrupt Rating (DC): 50 kA
• Interrupt Rating (combined): 200 kA AC / 50 kA DC
• Class: AR
• Body Size: 1.218 in Dia x 5.085 in L
• Body Diameter: 1.218 in
• Body Length: 5.085 in
• Body Type: Cartridge / Round
• Body Material: Melamine
• Mounting Type: Bolt / Direct Busbar / Stud
• Mounting Method: Bolt-In
• Response Time: ~10 ms
• Opening/Speed: Very fast-acting (FF)
• I2t Characteristics: Low I2t (extremely current limiting)
• Operating Temperature Range: -55 to 125 C
• PG Holder: LSCR Series
• Approvals/Certifications: RoHS compliant; REACH compliant; cULus File No. E71611; CE certified
• Country of Origin: United States
• Typical Applications: Power converters (inverters, rectifiers), power supplies, UPS, variable speed drives, control circuits, soft starters, industrial equipment
