Littelfuse L60030M-1PQ LFSE L60030M-1PQ ACS 600V Midget Bl

Product Description

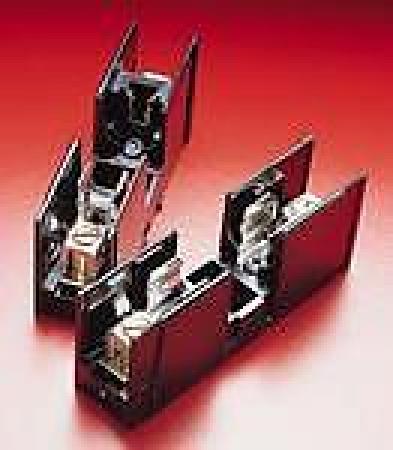

The Littelfuse L60030M-1PQ is a reliable midget fuse block designed for use in power distribution applications. This fuse block operates at a voltage of six hundred volts and carries a current rating of thirty amps. It is suitable for use with various Littelfuse series, including BLF and KLK.

• High-strength materials minimize damage during installation.
• Flexible terminal options streamline installation needs.
• DIN rail mountable for versatile fitting options.

Product Highlights

This fuse block features a space-saving design with high-temperature materials that prevent breakage, ensuring durability and reliability.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: L60030M-1PQ

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 30 A
• Type: Gangable
• Class: CC
• Connection Type: Pressure Plate
• Fuse Length: 38 mm
• Fuse Diameter: 10 mm
• Wire Size: 14 to 10 AWG
• Material: Thermoplastic
• Mounting Type: DIN Rail
• Dimensions: 0.783 in W x 1.25 in D x 3 in H
• Temperature Rating: 125 deg C
• Number of Poles: 1
• Suitable For Use With: BLF, BLN, BLS, FLA, FLM, FLQ, FLU, KLK, KLKD, KLQ Series Fuse
