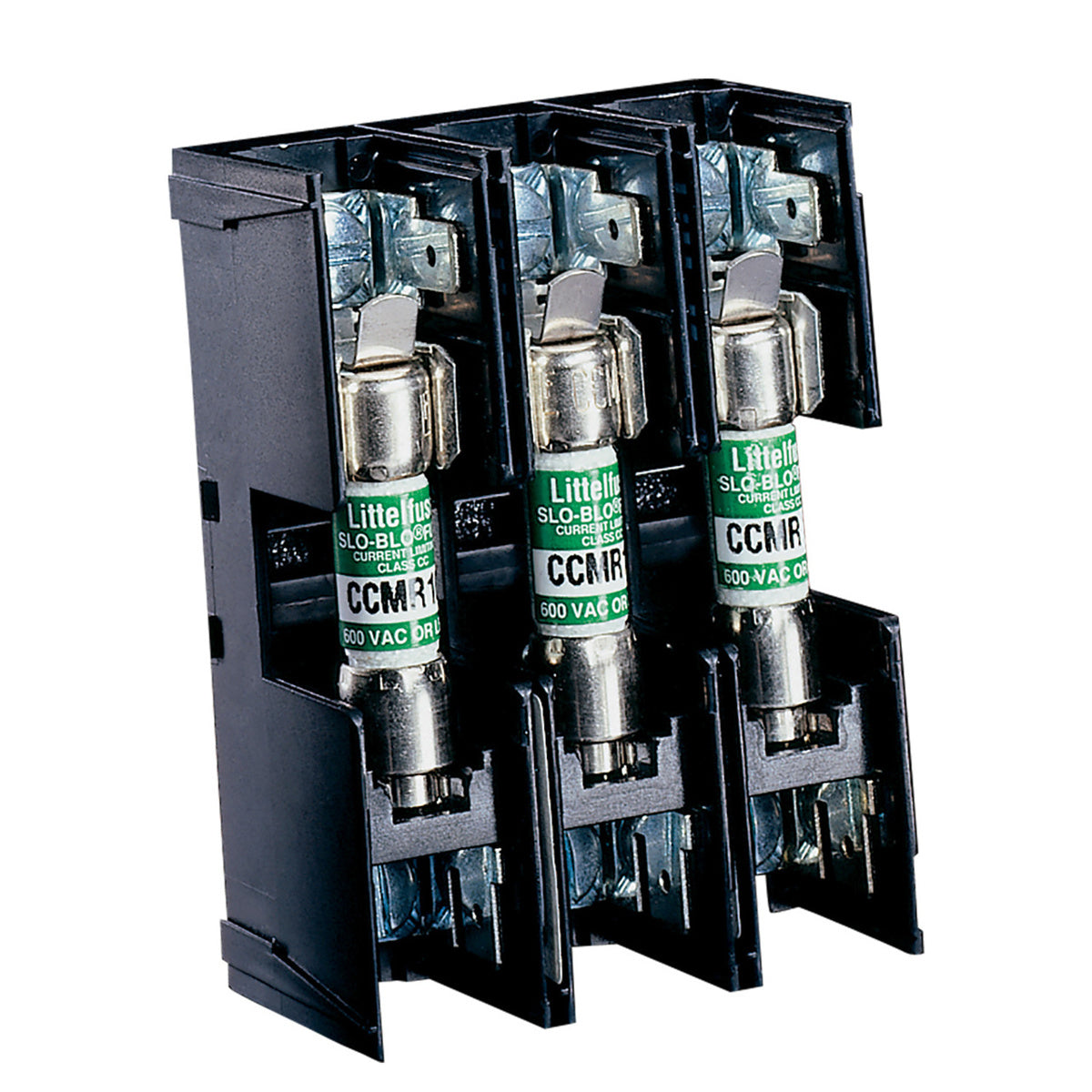

Littelfuse L60030C2PQ Fuse Block 600V 30A DIN Rail Mount

Product Description

The Littelfuse L60030C2PQ Fuse Block, rated for 600V and 30A, is a high-quality electrical component designed for industrial and commercial use. This fuse block ensures reliable protection for electrical circuits and is suitable for Class CC fuses. It supports both AC and DC voltage applications.

• Rated for 600V AC/DC
• Supports 30A current
• DIN rail mountable

Product Highlights

This Littelfuse L60030C2PQ fuse block features a pressure plate connection and is made from durable thermoplastic. It supports multiple types of fuses, including CCMR, KLDR, and KLKR. The unit's design minimizes heat rise and resistance, ensuring efficient performance. It includes a rejection feature to prevent improper fuse use.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer: Littelfuse

Technical Specifications

• MPN: L60030C2PQ
• Voltage Rating: 600V AC/DC
• Amperage: 30A
• Fuse Type: Class CC
• Connection Type: Pressure Plate
• Mounting Type: DIN Rail
• Material: Thermoplastic
• Dimensions: 3 in L x 1.533 in W x 1.25 in H
• Fuse Diameter: 13/32 in
• Fuse Length: 1-1/2 in
• Standards/Approvals: UL File No. E14721, CSA File No. LR7316, RoHS Compliant
• Temperature Rating: 125 degrees C
• Country of Origin: China
