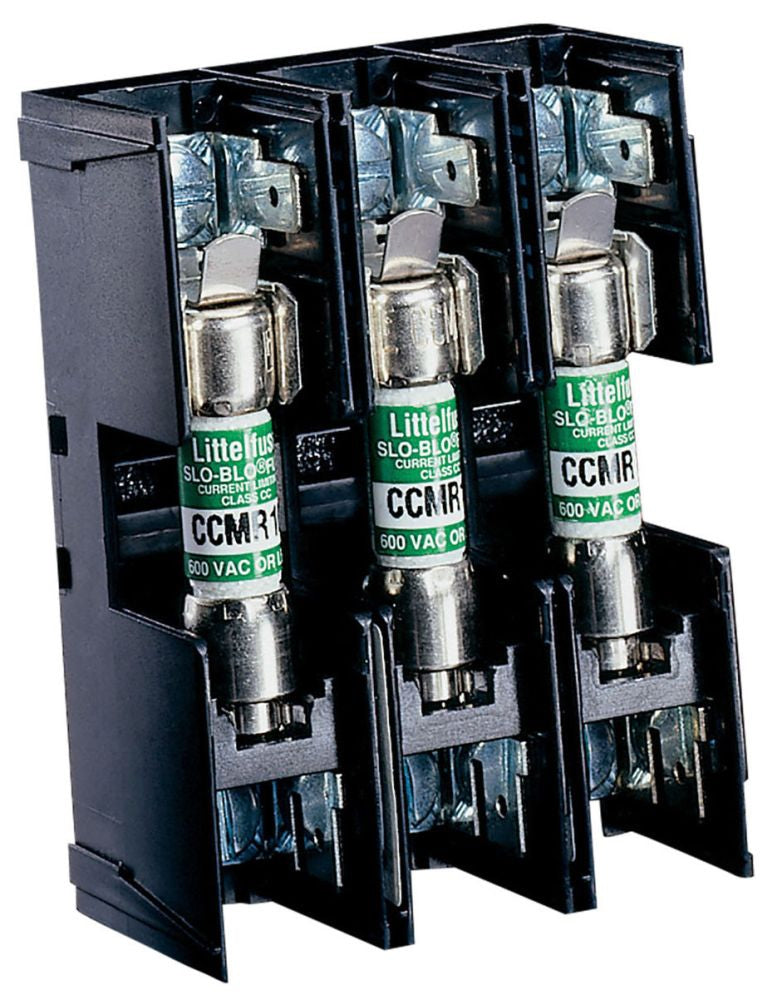

Littelfuse L60030C-1SQ Class CC Fuse Block With Screw Terminal

Product Description

Littelfuse L60030C-1SQ is a fuse block designed for various electrical applications. It operates at 600 VAC/VDC and has a 30-amp rating. This device connects through screws and accommodates wire sizes from fourteen to ten AWG. Ideal for use with CCMR, KLDR, and KLKR Series fuses, it is suitable for DIN rail mounting.

• Space-saving design for efficient installation
• Universal mounting holes for easy replacement
• Lead-free materials comply with environmental standards

Product Highlights

This fuse block features a compact structure, making it suitable for diverse electrical settings. It ensures safe and reliable connectivity for various applications.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: L60030C-1SQ

Technical Specifications

• Amperage Rating: 30 A
• Class: CC
• Connection Type: Screw
• Dimensions: 3 inches L x 0.783 inches W x 1.25 inches H
• Fuse Diameter: 13/32 inches
• Fuse Length: 1-1/2 inches
• Material: Thermoplastic
• Mounting Type: DIN Rail
• Number of Poles: 1
• Suitable For Use With: CCMR, KLDR, KLKR Series Fuses
• Temperature Rating: 125 degrees C
• Voltage Rating: 600 VAC/VDC
• Wire Size: 14 to 10 AWG
