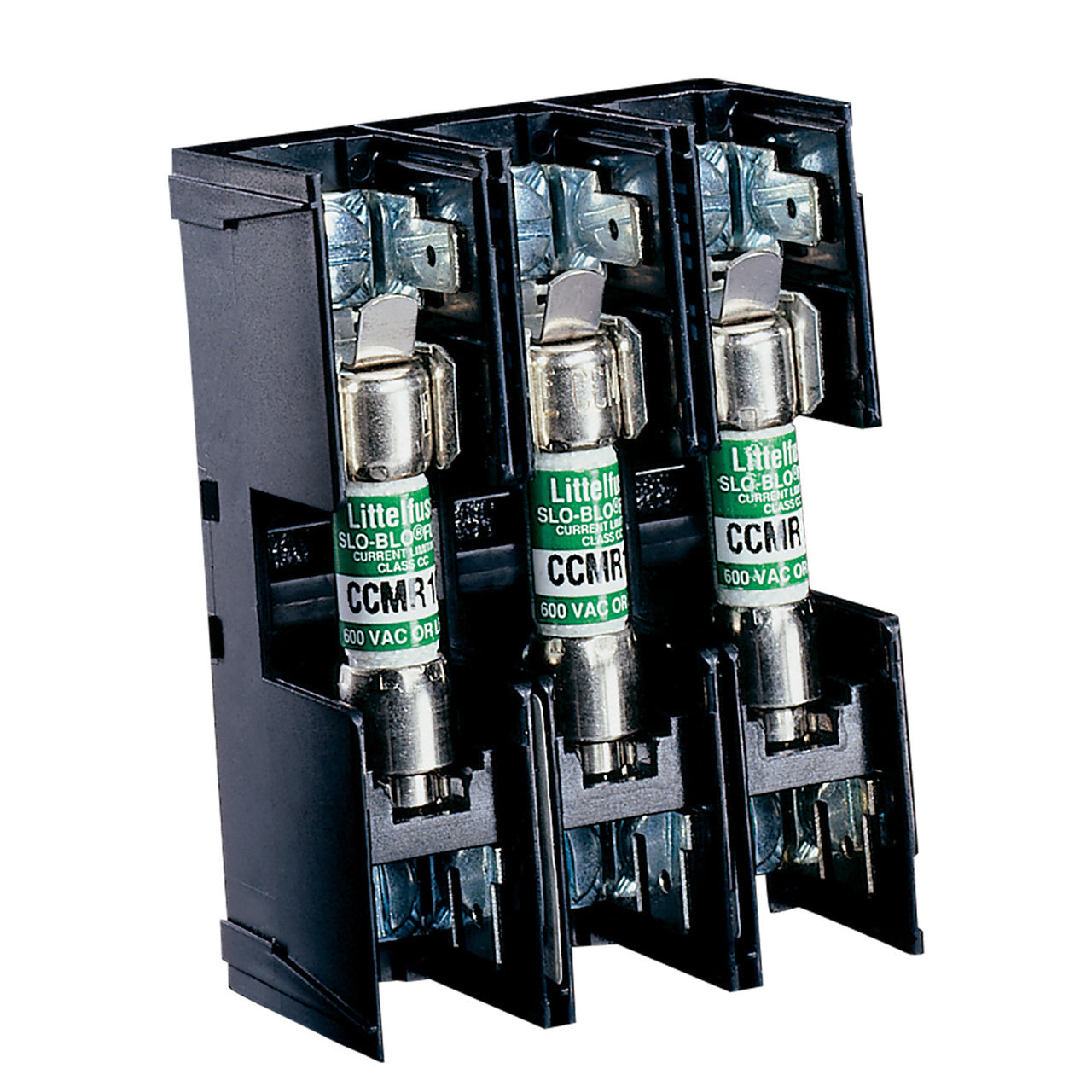

Littelfuse L60030C-1PQ Class CC Fuse Block with Pressure Plate Terminal

Product Description

Littelfuse L60030C-1PQ is a Class CC fuse block designed for effective integration on DIN rails. This fuse block supports secure mounting on thirty-five millimeter DIN rails and features a new releasable mechanism that allows easy installation and removal without needing to remove adjacent components.

• Integral DIN rail mounting for stability
• Releasable mechanism for easy installation
• Compatible with various fuse series including CCMR, KLDR, and KLKR

Product Highlights

Littelfuse L60030C-1PQ enhances assembly efficiency in electrical panels and machinery. Its design reduces the need for mounting adapters, saving time during installation.

Product Information

Standard Information

• Manufacturer: Littelfuse
• UPC: 079458070071

Technical Specifications

• Catalog Number: L60030C-1PQ
• Item Type: Class CC Fuseblock
• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/VDC
• Connection Type: Pressure Plate
• Wire Size: 14 to 10 AWG
• Fuse Length: 1-1/2 inches
• Fuse Diameter: 13/32 inches
• Dimensions: 3 inches L x 0.783 inches W x 1.25 inches H
• Mounting Type: DIN Rail
• Temperature Rating: 125 degrees C
• Material: Thermoplastic
