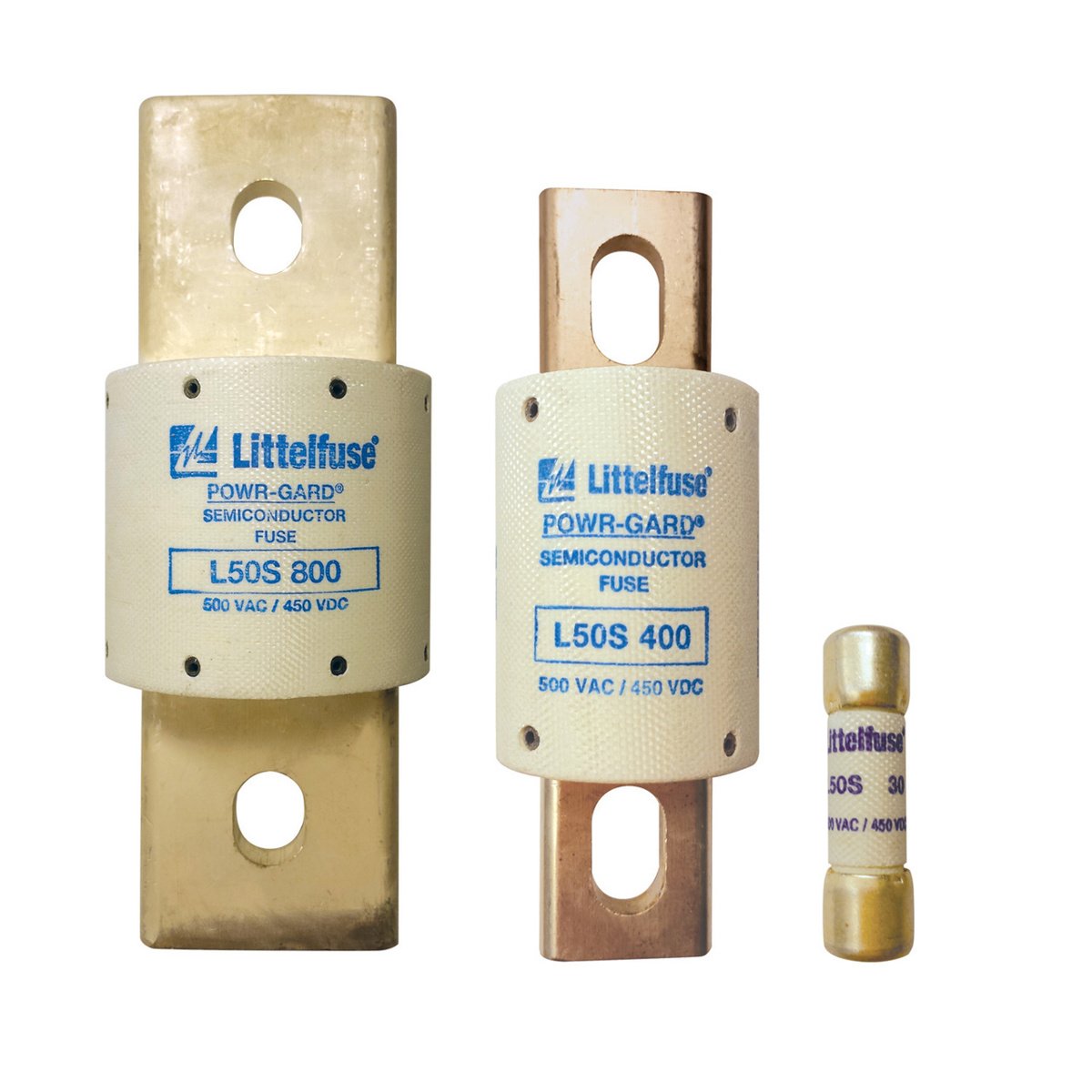

Littelfuse L50S300 Very Fast Acting Semiconductor Fuse

Product Description

The Littelfuse L50S300 is a very fast acting semiconductor fuse designed specifically for the protection of electronics and sensitive equipment. Capable of handling three hundred amps of current, this fuse is rated for five hundred volts AC and four hundred fifty volts DC, making it suitable for diverse applications. It features a traditional round body made of fiberglass and is available for bolt mounting. This fuse employs advanced metallurgical materials to ensure reliability and safety in operation.

• Very fast acting design
• UL recognized and appropriate for semiconductor protection
• Features a traditional round body with fiberglass construction

Product Highlights

This semiconductor fuse is engineered for high-speed electrical circuits, ensuring minimal downtime and maximum efficacy in protecting critical components.

Product Information

Standard Information

• Catalog Number: L50S300
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 300 A
• Voltage Rating: 500 VAC/450 VDC
• Body Size: 1.5 inches diameter x 4.34 inches length
• Body Type: Traditional/Round
• Interrupt Rating: 200/20 kA
• Mounting Type: Bolt
• Terminal Type: Blade
• Material: Fiberglass
