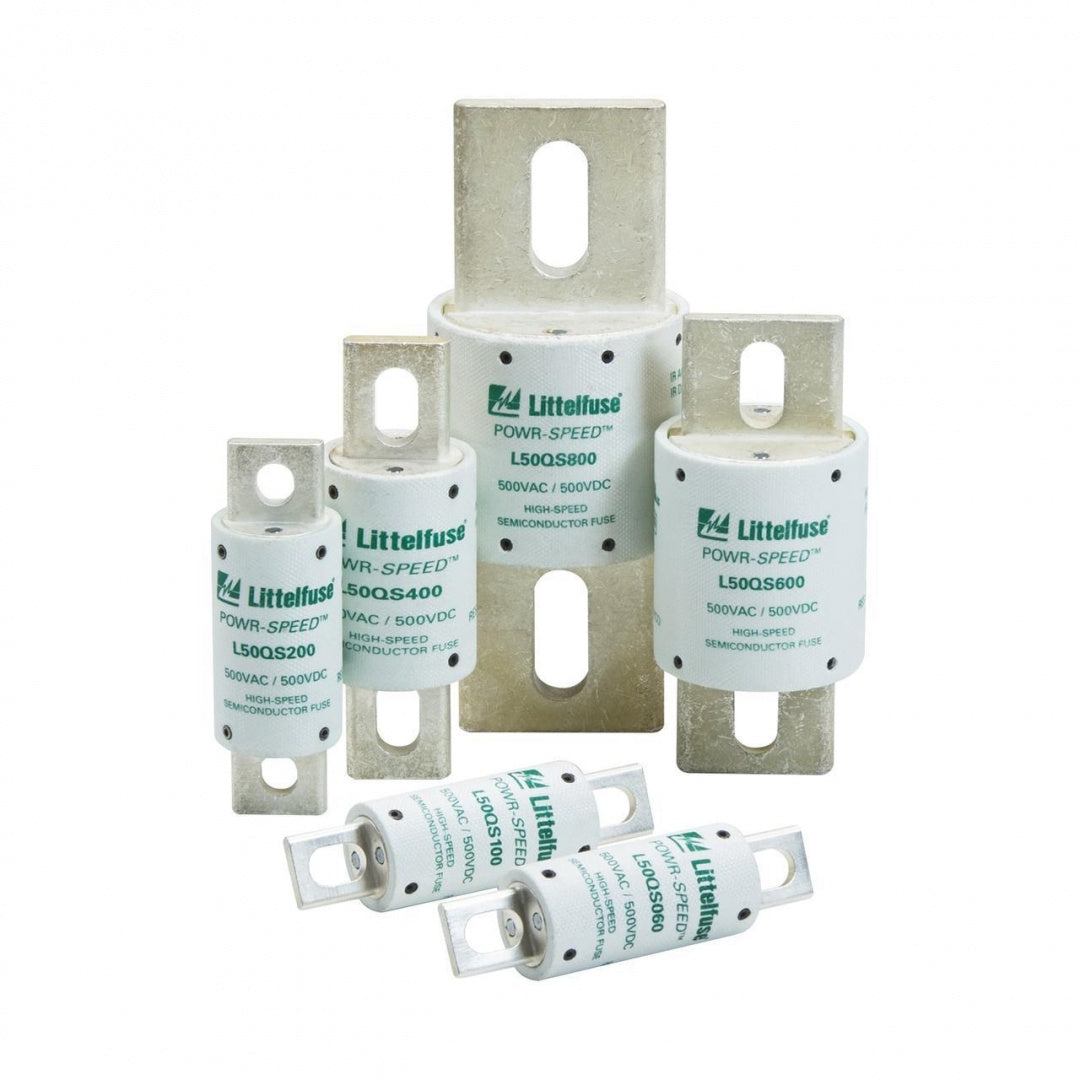

LITTELFUSE L50QS800 POWR-SPEED ROUND-BODY 2ND GEN SEMICONDUCTOR FUSE

Product Description

Littelfuse L50QS800 is a semiconductor fuse designed for high-speed applications. This fuse is part of the POWR-SPEED series and is suitable for various electrical applications including power converters and control circuits. It has a rating of eight hundred amps and can handle voltages up to five hundred VAC/VDC.

• High-speed response time of ten milliseconds
• Halogen-free construction for safety
• Compatible with bolted style dimensions

Product Highlights

This fuse offers reliable performance for high-demand electrical systems.

Product Information

Standard Information

• Manufacturer: Littelfuse
• UPC: 079458860146

Technical Specifications

• Amperage Rating: 800 A
• Voltage Rating: 500 VAC/VDC
• Interrupt Rating: 50/200 kA
• Response Time: 10 ms
• Body Size: 2.5 in Dia x 6.187 in L
• Body Type: Cartridge/Round
• Class: AR
• Mounting Type: Bolt/Direct Busbar/Stud
• Material: Melamine
• Series: L50QS
• Type: Halogen-Free High Speed North American Traditional
