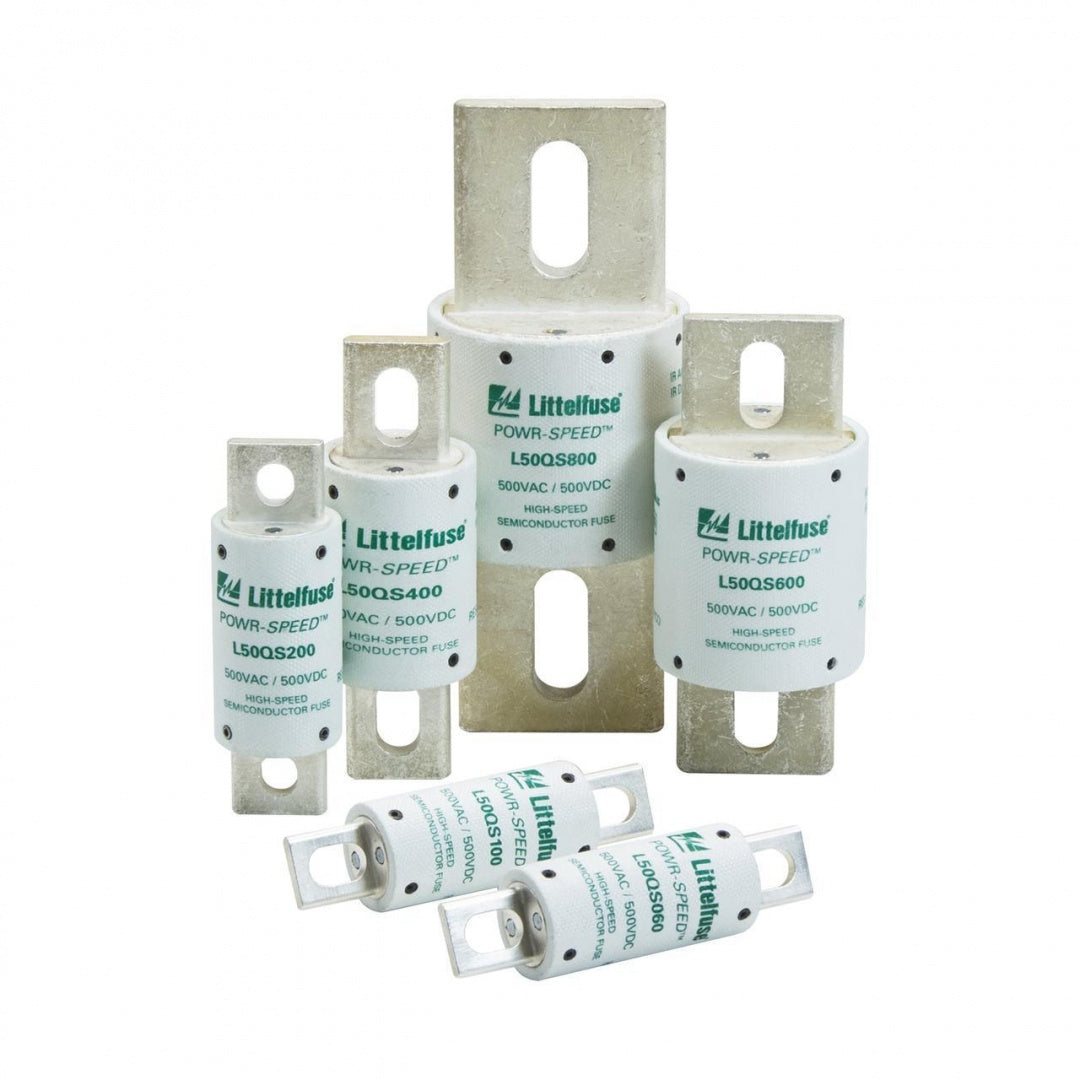

LITTELFUSE L50QS100 POWR-SPEED ROUND-BODY 2ND GEN SEMICONDUCTOR FUSE

Product Description

Littelfuse POWR-SPEED 2nd Generation Semiconductor Fuse L50QS100 is designed to meet high-speed requirements. This fuse is rated for one hundred amperes and operates at five hundred volts AC or DC. It uses a bolt or direct busbar mounting method, providing versatile installation options.

• Halogen-free construction for safety.
• 200 kA AC and 50 kA DC interrupt ratings.
• Quick response time of 10 ms.

Product Highlights

This fuse is ideal for various applications such as power converters, UPS systems, and control circuits.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: L50QS100

Technical Specifications

• Amperage Rating: 100 A
• Body Size: 1 inch Diameter x 3-5/8 inches Length
• Body Type: Cartridge/Round
• Class: AR
• Interrupt Rating: 50/200 kA
• Material: Melamine
• Mounting Type: Bolt/Direct Busbar/Stud
• Response Time: 10 ms
• Series: L50QS
• Type: Halogen-Free High Speed North American Traditional
• Voltage Rating: 500 VAC/VDC
