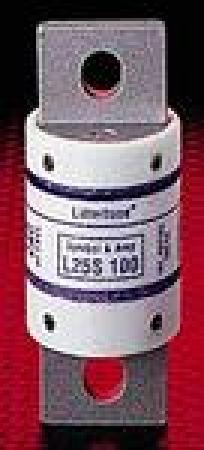

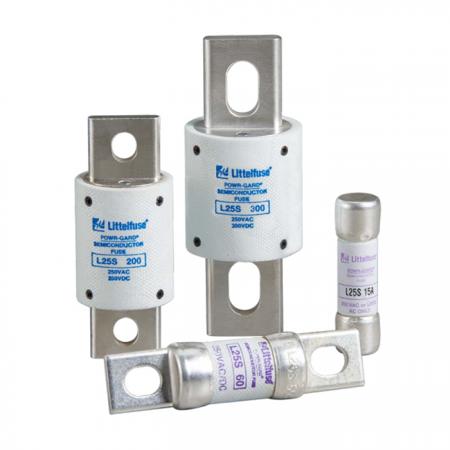

LITTELFUSE L25S700 VERY FAST-ACTING SEMICONDUCTOR FUSE 700 A 250 VAC/200 VDC

Product Description

Littelfuse L25S700 is a very fast-acting semiconductor fuse designed for efficient overload protection. This fuse is rated for seven hundred amperes and operates at two hundred fifty volts alternating current and two hundred volts direct current. It has a high interrupt rating of two hundred kiloamperes for AC and twenty kiloamperes for DC. The fuse features a blade terminal and is suitable for bolt mounting.

• Fast-acting semiconductor fuse for effective protection
• Rated for seven hundred amperes and two hundred fifty VAC/200 VDC
• High interrupt ratings for reliable performance

Product Highlights

This fuse is suitable for various applications, including the protection of silicon controlled rectifiers, thyristors, and other solid-state devices.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Series: L25S

Technical Specifications

• Amperage Rating: 700 A
• Voltage Rating: 250 VAC/200 VDC
• Interrupt Rating: 200/20 kA
• Body Size: 1-1/2 in Dia x 3-27/32 in L
• Body Type: Round
• Material: Fiberglass
• Mounting Type: Bolt
• Terminal Type: Blade
• Indicating/Non-Indicating: Indicating
