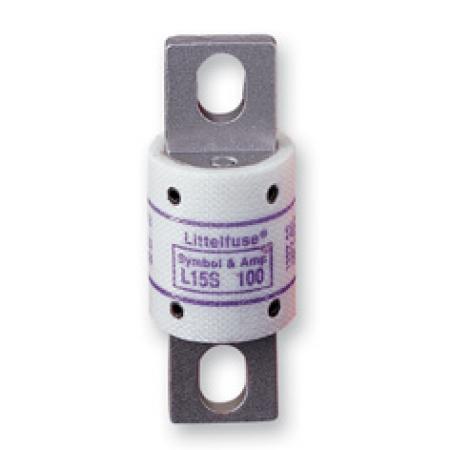

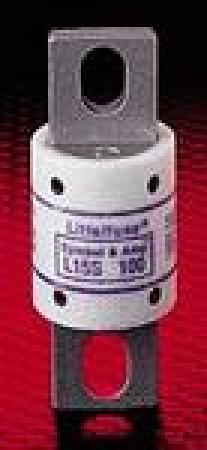

LITTELFUSE L15S250 VERY FAST-ACTING SEMICONDUCTOR FUSE 250 A 150 VAC/100 VDC

Product Description

The LITTELFUSE L15S250 is a very fast-acting semiconductor fuse designed to provide effective protection for sensitive electrical devices. This fuse has a current rating of two hundred fifty amperes and is suitable for use with voltage ratings of one hundred fifty volts AC and one hundred volts DC. Its design features a round body made from fiberglass, with a diameter of one inch and a length of two and twenty-one thirty-seconds inches.

• Extremely current-limiting
• Indicating type for easily visible status
• Low I2T and peak let-through currents

Product Highlights

This fuse is ideal for protecting devices like silicon controlled rectifiers, diodes, and transistors in solid-state applications. It is part of the L15S series and features a bolt mounting and blade terminal type.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• Type: Very Fast Acting High Speed

Technical Specifications

• Amperage Rating: 250 A
• Voltage Rating: 150 VAC / 100 VDC
• Body Size: 1 in Dia x 2-21/32 in L
• Body Type: Round
• Interrupt Rating: 100/20 kA
• Material: Fiberglass
• Mounting Type: Bolt
• Indicating Type: Indicating
• Series: L15S
• Terminal Type: Blade
