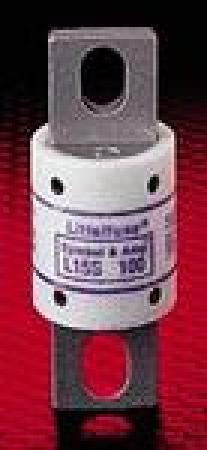

LITTELFUSE L15S150 Very Fast-Acting Semiconductor Fuse 150 A 150 VAC/100 VDC

Product Description

The LITTELFUSE Very Fast-Acting Semiconductor Fuse, model L15S150, is designed to provide reliable and efficient protection for electrical systems. This fuse offers a current rating of 150 A and is suitable for voltages up to 150 VAC and 100 VDC. Ideal for use in applications involving sensitive electronic components, it features a high interrupt rating of 100 kA at 150 VAC and 20 kA at 100 VDC.

• Features blade terminal and bolt mounting configuration
• Constructed with fiberglass for durability
• Indicating type provides visual confirmation of fuse status

Product Highlights

This fuse is essential for protecting devices such as silicon-controlled rectifiers, diodes, and more from overcurrent conditions.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• Type: Very Fast Acting High Speed

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 150 VAC/100 VDC
• Interrupt Rating: 100/20 kA
• Body Size: 1 inch Diameter x 2-21/32 inches Length
• Body Type: Round
• Material: Fiberglass
• Mounting Type: Bolt
• Terminal Type: Blade
• Series: L15S
• Indicating/Non-Indicating: Indicating
