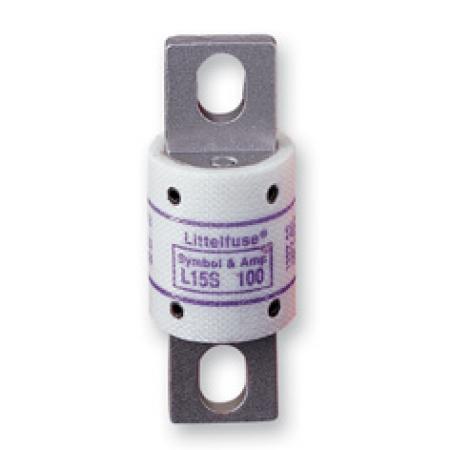

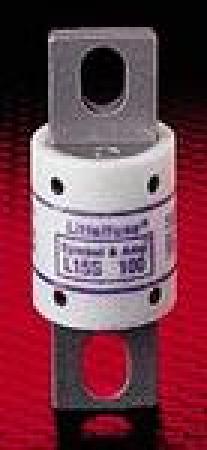

LITTELFUSE L15S100 VERY FAST-ACTING SEMICONDUCTOR FUSE 100 A

Product Description

The LITTELFUSE L15S100 is a very fast-acting semiconductor fuse designed for high-speed applications. This fuse supports up to one hundred amperes and operates efficiently at voltages of one hundred fifty VAC or one hundred VDC. With an interrupt rating of one hundred kA at one hundred fifty VAC and twenty kA at one hundred VDC, it ensures effective protection in electronic circuits.

• Indicating type for clear status visibility.
• Built with a fiberglass body featuring blade terminals.
• Mounting type is bolt for secure installation.

Product Highlights

This semiconductor fuse is ideal for protecting devices such as silicon controlled rectifiers, diodes, and transistors from surges and transient overvoltages. It minimizes the risk of damage due to overcurrent by providing extremely low peak let-through currents.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• Body Size: One inch diameter x two and twenty-three thirty-seconds inches long

Technical Specifications

• Amperage Rating: 100 A
• Body Type: Round
• Material: Fiberglass
• Series: L15S
• Mounting Type: Bolt
• Terminal Type: Blade
• Voltage Rating: 150 VAC/100 VDC
• Interrupt Rating: 100/20 kA
