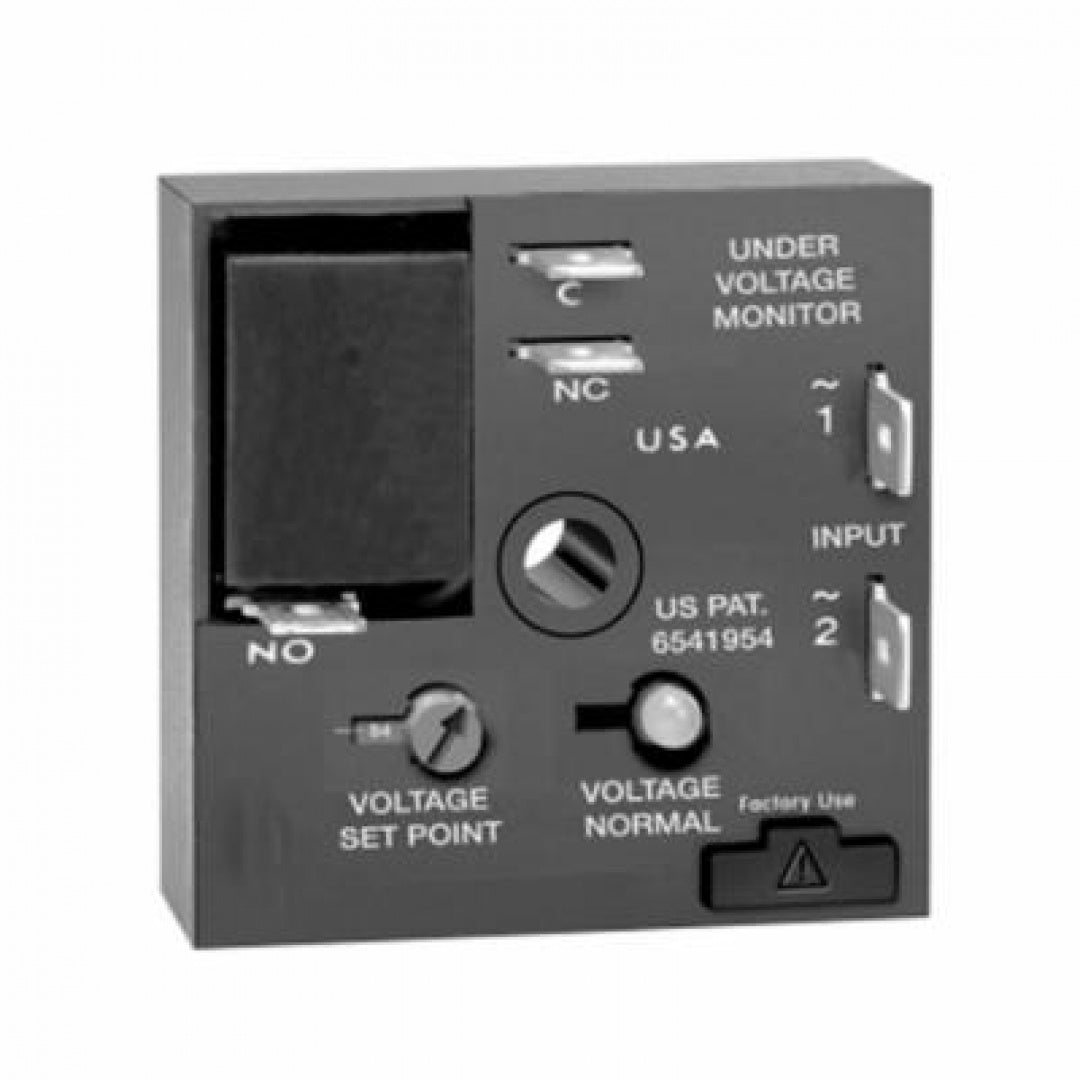

Littelfuse KVM6 SINGLE PHASE VOLTAGE MONITOR 110/120/220/240 VAC

Product Description

The Littelfuse KVM6 is a single-phase voltage monitor designed for reliable voltage monitoring in electrical systems. It operates with voltage ratings of one hundred ten to two hundred forty VAC and provides protection against under-voltage conditions. This relay is suitable for applications requiring continuous monitoring and features an LED display for quick status assessment.

• Continuous monitoring for under-voltage conditions
• Compact design measures two inches square
• LED indication for output status

Product Highlights

This voltage monitor is ideal for OEM applications where space and efficiency are priorities. It is encapsulated to resist shock and humidity, ensuring durability in various environments.

Product Information

Standard Information

• Manufacturer: Littelfuse
• UPC: 079458995947

Technical Specifications

• Amperage Rating: 8 A at 120 VAC
• Contact Configuration: SPDT
• Dimensions: 2 in H x 2 in W x 1.21 in D
• Display Type: LED
• Frequency Rating: 50/60 Hz
• Mounting Type: Surface
• Series: KVM
• Terminal Type: Screw
• Trip Delay: =150 ms
• Type: 1-Phase Electro Mechanical
• Voltage Rating: 110/120/220/240 VAC
