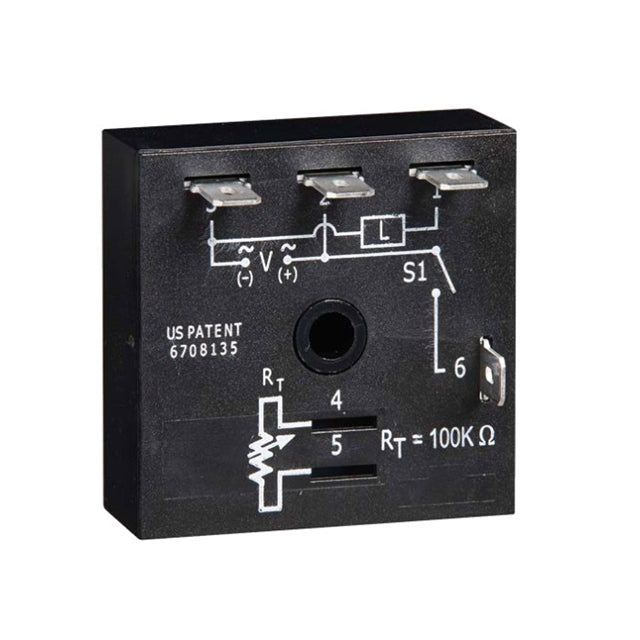

Littelfuse KSDB314SP Solid State Timer 24 VDC (Each) Replacement MPN KSDB314SP

Product Description

The Littelfuse KSDB314SP is a solid state timer designed for use in motor control applications. This timer operates on twenty-four volts DC and features a fixed positive switching mode with a delay on break functionality. It is ideal for tasks requiring precision timing and reliability. The compact design allows for surface mounting, making installation straightforward and efficient.

• Operating temperature range of minus forty to sixty degrees Fahrenheit.
• Accuracy of plus or minus 0.5% with factory calibration.
• Ten-year warranty for dependable use.

Product Highlights

This unit utilizes microcontroller technology, ensuring consistent performance across various conditions. The solid-state design eliminates moving parts, thus reducing wear and maintaining longevity, even in challenging environments.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: KSDB314SP

Technical Specifications

• Operation Mode: Delay On Break
• Voltage Rating: 24 VDC
• Mounting Type: Surface
• Time Setting: 4 seconds
• Contact Form: SPDT/NO-NC (1 Form C)
• Dimensions: 2 inches H x 2 inches W x 1.21 inches D
• Electrical Connections: Male Quick-Connect Terminal
• Temperature Rating: -40 to 60 degrees Fahrenheit
• Country of Origin: Mexico
