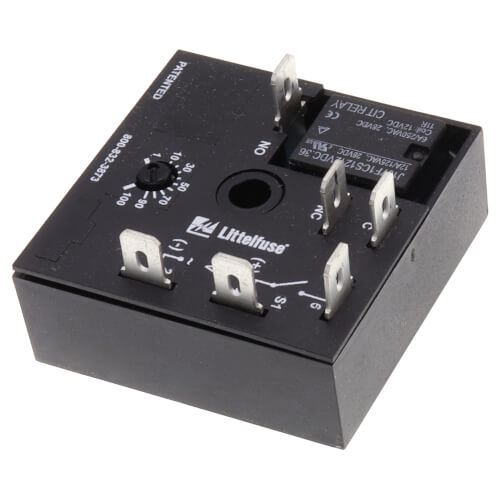

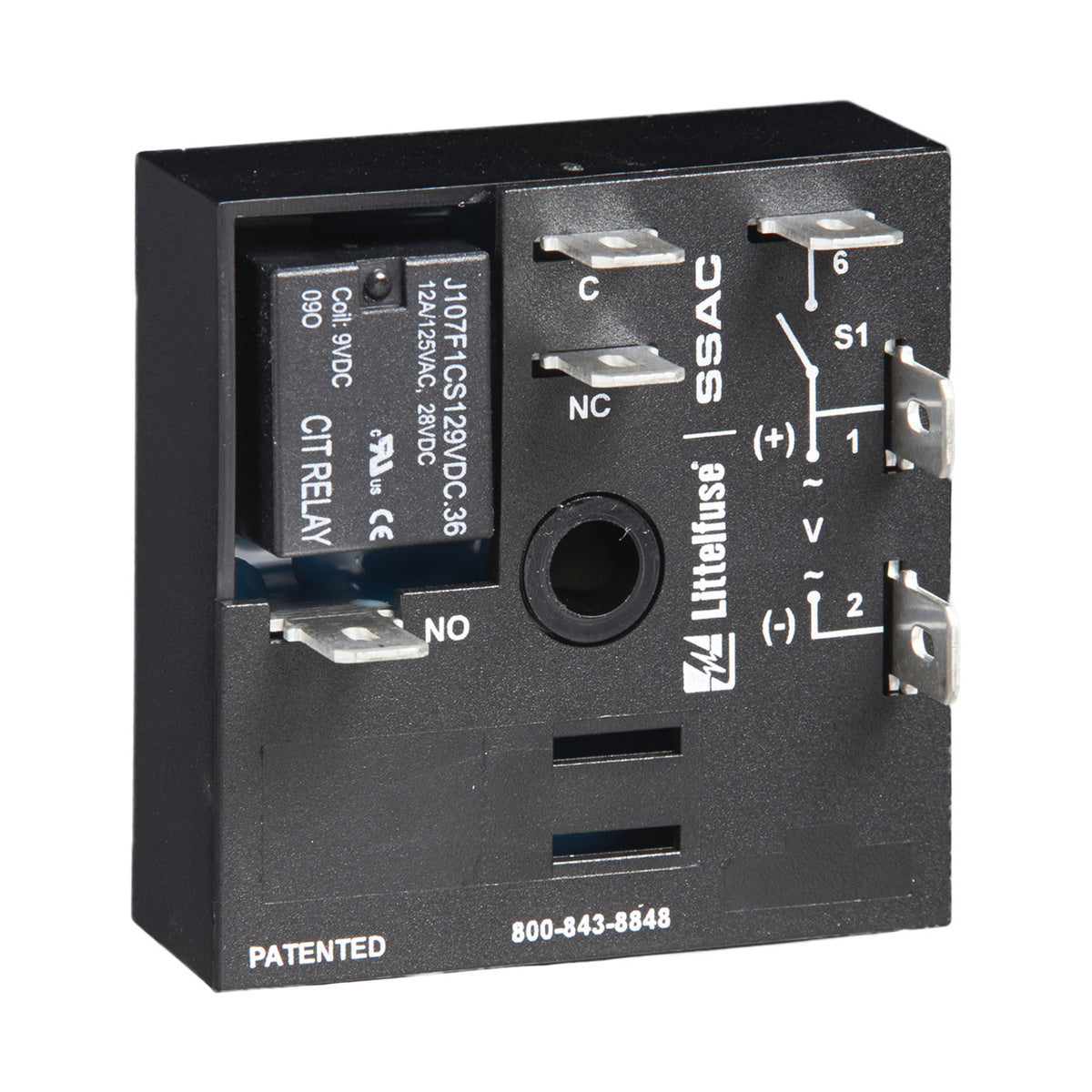

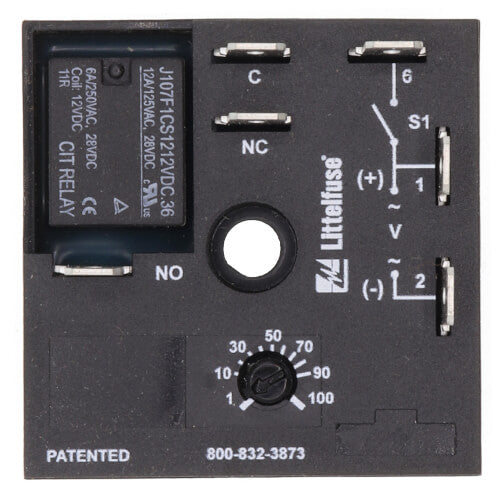

Littelfuse KRDB424 2x2 Delay-On-Break Time Relay SPDT 120V

Product Description

The Littelfuse KRDB424 is a compact time delay relay designed to measure just 2 inches (50.8 mm) square. Featuring a microcontroller based timing circuit, it offers excellent repeat accuracy and stability. Encapsulation ensures protection against shock, vibration, and humidity, making it ideal for demanding industrial environments.

• Compact design suitable for space-constrained environments
• Microcontroller timing circuit for high accuracy
• Encapsulation for enhanced durability

Product Highlights

The Littelfuse KRDB424 time delay relay offers a cost-effective solution for OEM applications. It is designed to provide small size, isolation, reliability, and long life, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer: Littelfuse

Technical Specifications

• Catalog Number: KRDB424
• Country of Origin: Mexico
• UPC: 079458994629
• GTIN: 00079458994629
• Operation Mode: Delay-On-Break
• Voltage Rating: 120 VAC
• Contact Form: SPDT/NO-NC (1 Form C)
• Time Setting: 1 to 100 min
• Temperature Rating: -40 to 60 deg C
• Mounting Type: Surface
• Dimensions: 2 in H x 2 in W x 1.21 in D
• Electrical Connections: Male Quick-Connect Terminal
• Type: Adjustable Onboard
