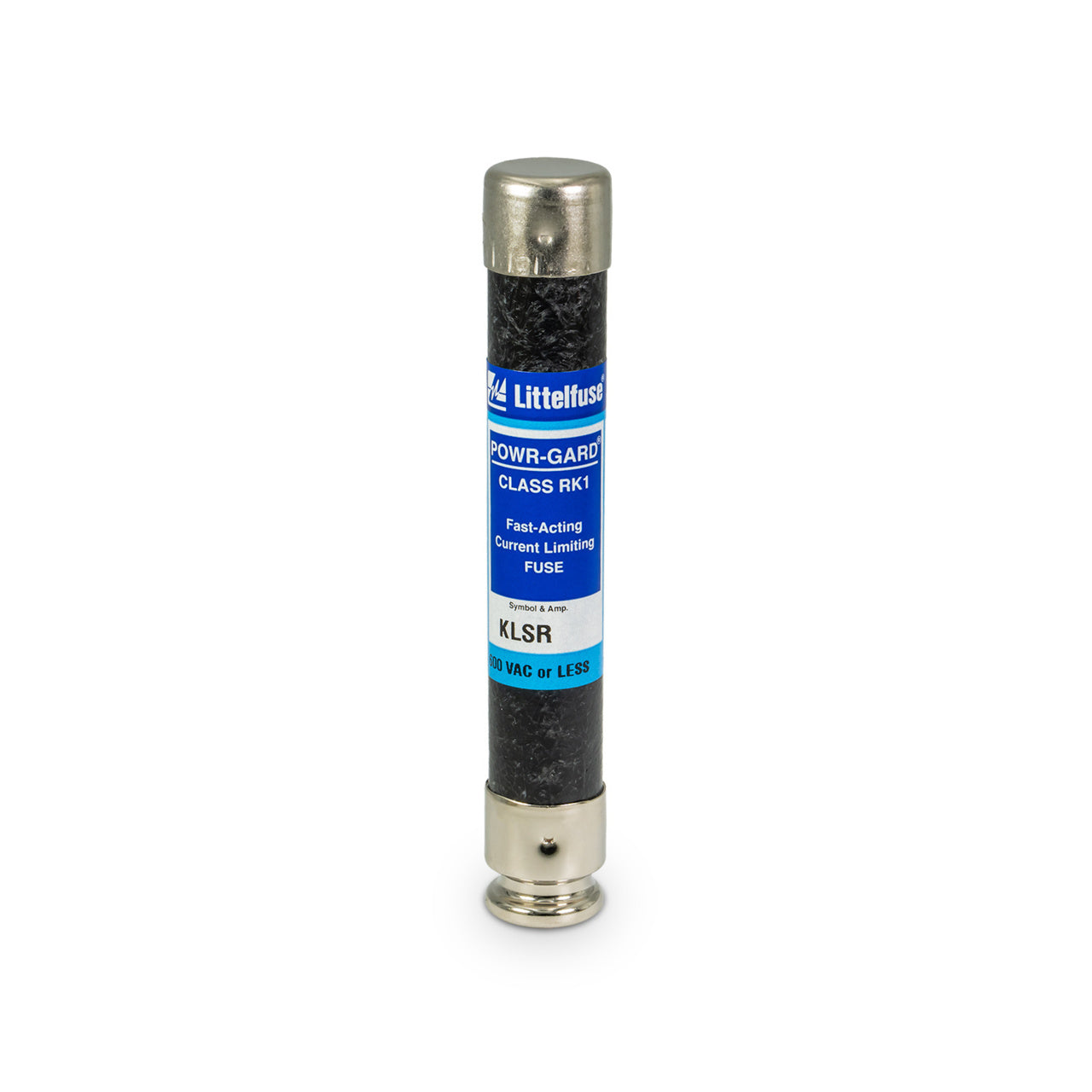

Littelfuse KLSR002 2A 600V Class RK1 Industrial Cartridge

Product Description

The Littelfuse KLSR002 is a 2 A, 600 V Class RK1 industrial cartridge fuse that provides fast-acting, current-limiting overload and short-circuit protection. The single-element silver link design delivers high interrupting capacity (200 kA at 600 VAC; 20 kA at 250 VDC) and frequency rating of 50/60 Hz. The composite cartridge measures 13/16 in diameter by 5 in length and is designed for holder mounting with ferrule terminals.

• 2 A continuous rating; 600 VAC / 250 VDC voltage rating; Class RK1 current-limiting design
• Interrupting rating 200 kA @ 600 VAC and 20 kA @ 250 VDC; single-element silver link, fast-acting
• Industrial cartridge size 13/16 in dia x 5 in length; composite body; ferrule terminal and holder mounting; rejection type

Product Highlights

Fast-acting, current-limiting RK1 cartridge fuse with 200 kA interrupting rating for industrial overload and short-circuit protection

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: KLSR002
