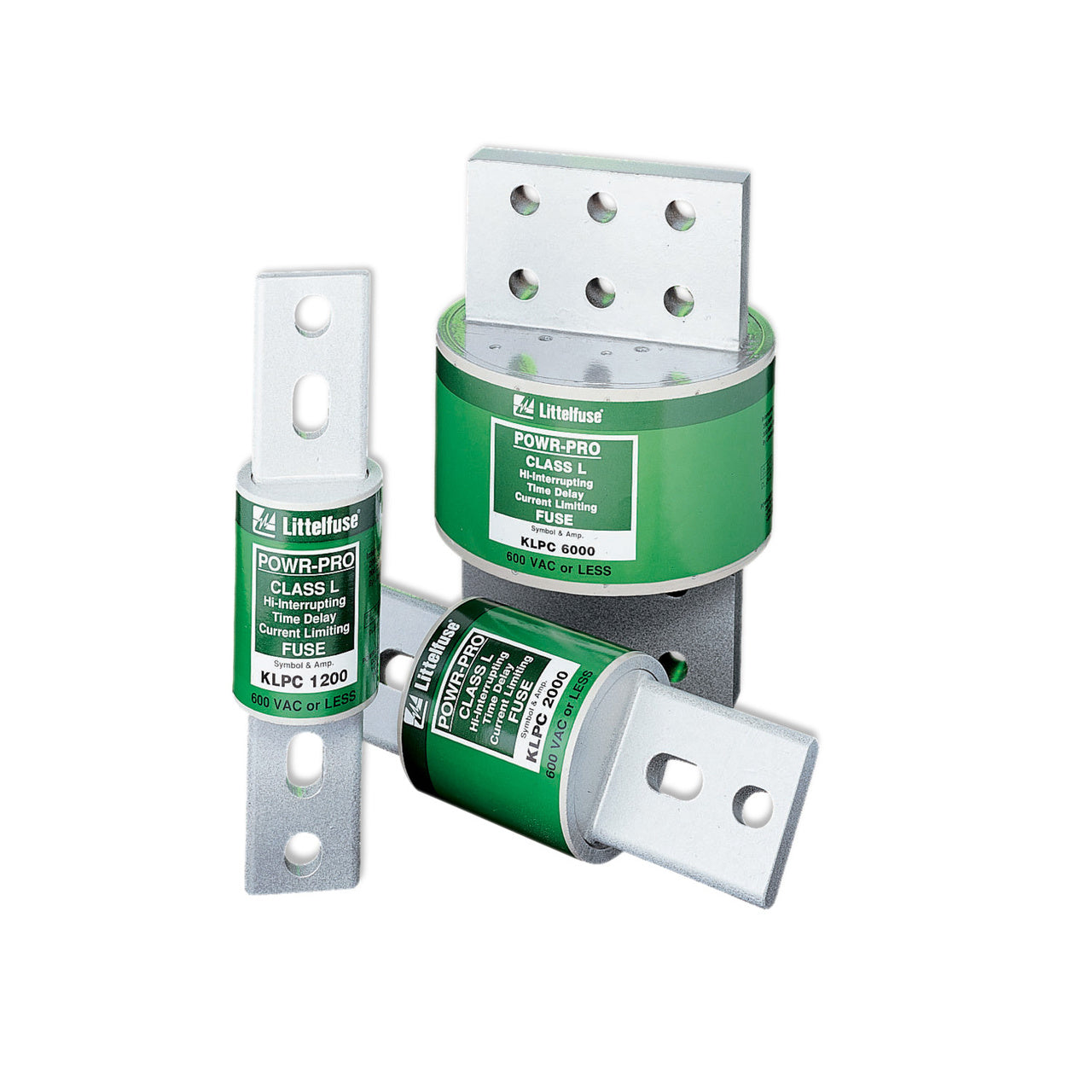

Littelfuse KLPC800 800 Amp 600 VAC 480 VDC Class L Time Delay Fuse

Product Description

The Littelfuse KLPC800 is a time delay fuse with an amperage rating of eight hundred at six hundred volts AC and four hundred eighty volts DC. This Class L fuse is engineered to protect circuits from overcurrent better than conventional fuses. It is designed with a specification-grade construction that meets the highest project standards. The fuse contains features such as pure silver links and glass-reinforced melamine bodies, making it durable and reliable in various electrical systems.

• Meets or exceeds stringent project specifications.
• Provides current limiting capabilities.
• UL Listed with a minimum ten-second delay at five hundred percent rated current.

Product Highlights

This fuse is suitable for switchboard mains and motor control center applications, providing essential protection to critical electrical components.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLPC800

Technical Specifications

• Voltage Rating: 600 VAC/480 VDC
• Amperage Rating: 800 A
• Interrupt Rating: 200000 Ampere (Symmetrical)
• Terminal Type: Knife Blade
• Body Type: Cylindrical
• Material: Melamine
• Application: Switchboard Mains
• Country of Origin: Mexico
