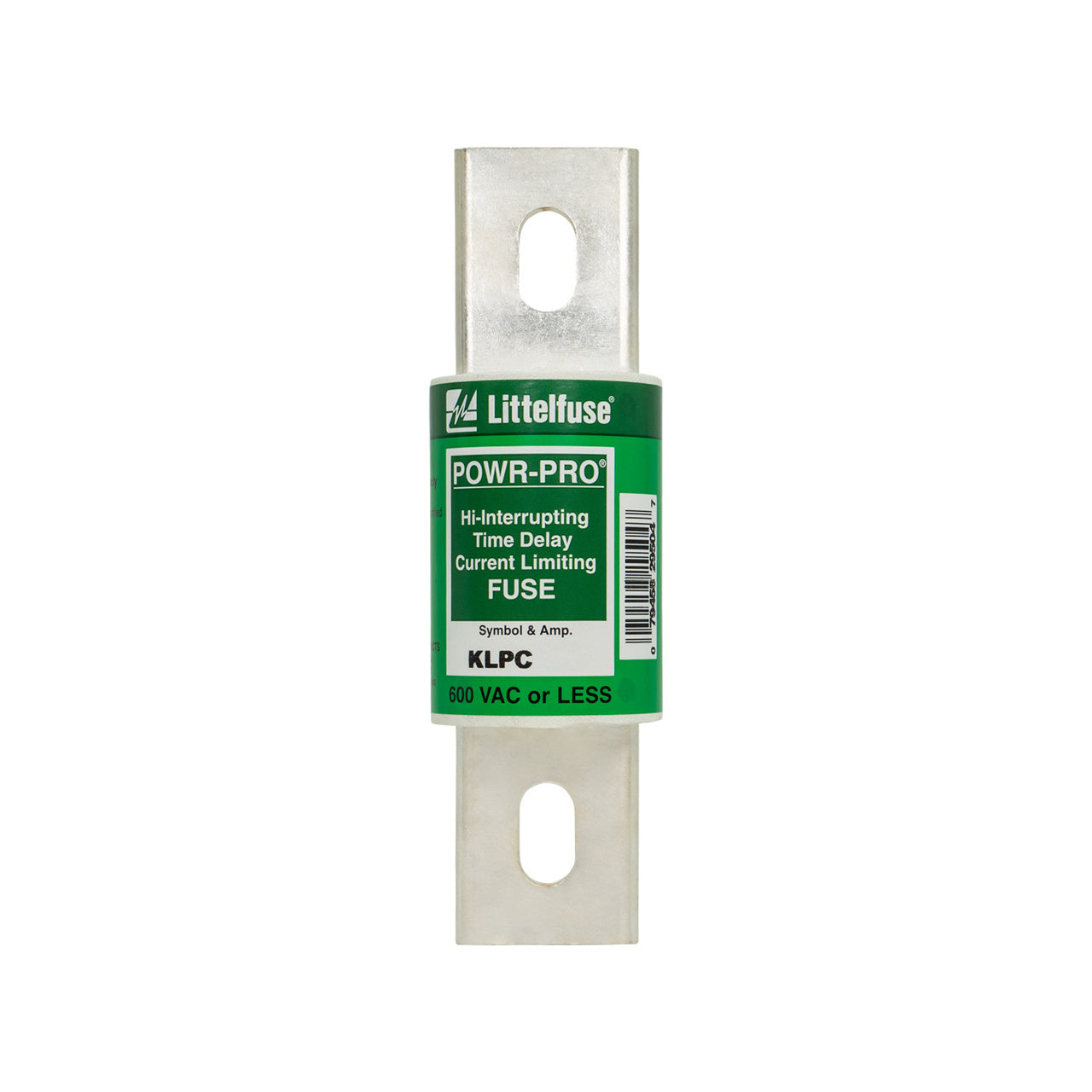

Littelfuse KLPC200 Class L time-delay fuse 200A (Pack of 1)

Product Description

Littelfuse KLPC200 is a Class L time-delay fuse rated 200 A for use in up to 600 VAC (480 VDC) systems. It provides overcurrent protection with current-limiting characteristics and a minimum ten-second time delay at 500% of rated current. Construction features 99.9% pure silver links, silver-plated copper end bells, glass-reinforced melamine body, O-ring seals and granular quartz filler for specification-grade performance in switchboard mains and feeder circuits.

• 200 A rating; 600 VAC / 480 VDC voltage rating; time-delay characteristic with minimum 10 seconds at 500% rated current
• Current-limiting design with interrupt rating 20 kAIC; non-indicating blade connection and bolt-in mounting
• Specification-grade construction: 99.9% pure silver links, silver-plated copper end bells, glass-reinforced melamine body, O-ring seals, granular quartz filler

Product Highlights

Class L, time-delay, current-limiting fuse rated 200 A and 600 VAC with specification-grade silver link construction and bolt-in/blade connection.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: KLPC200
• Country of Origin: China
