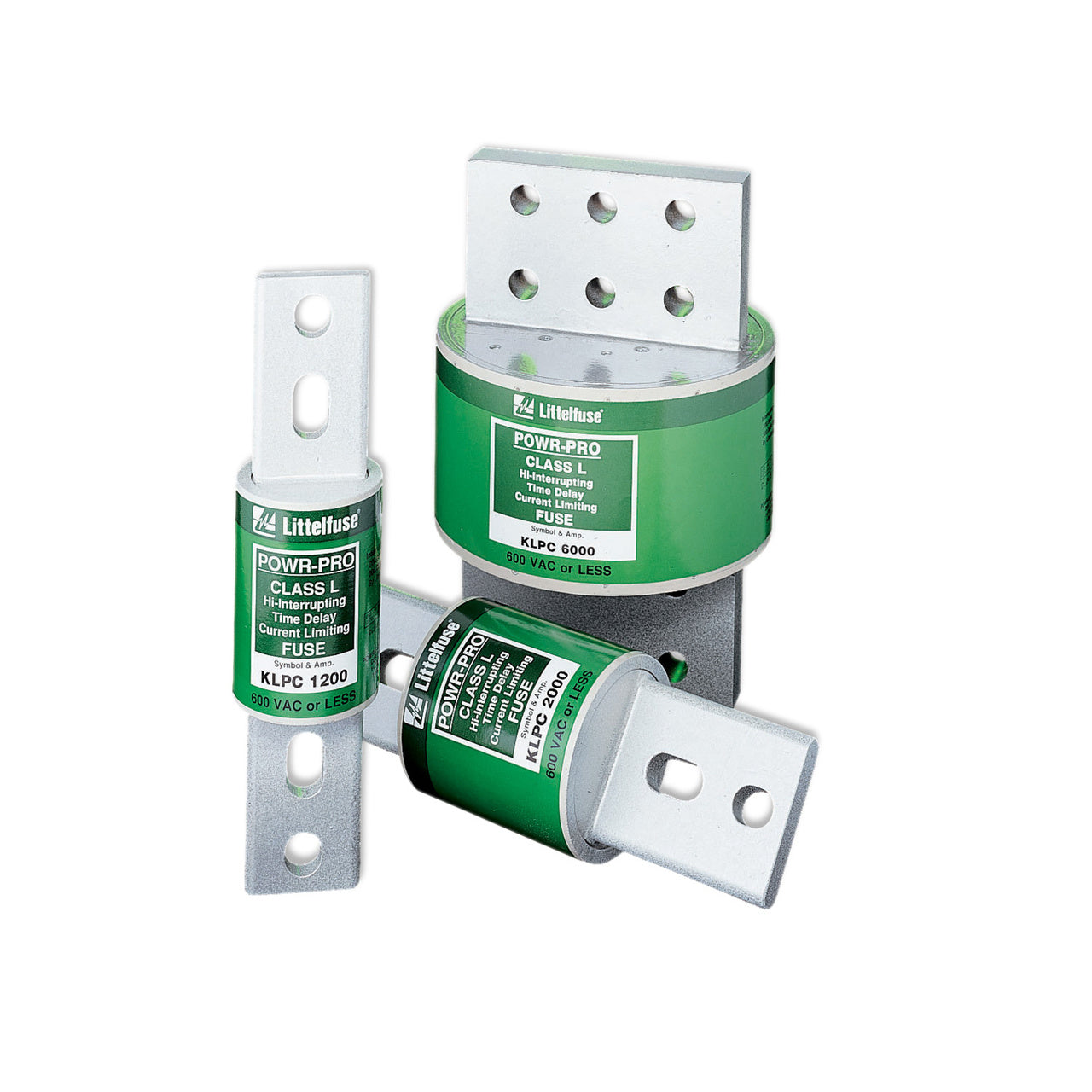

Littelfuse KLPC1200 1.2 kA 600 VAC 480 VDC Class L Time Delay Fuse

Product Description

The Littelfuse KLPC1200 is a Class L time delay fuse with a rating of 1.2 kA at 600 VAC and 480 VDC. This fuse is designed to provide reliable overcurrent protection in various applications, ensuring the safety of circuits from two hundred to six thousand amperes.

• Provides a minimum of ten seconds time delay at five hundred percent rated current.
• Features specification-grade construction with 99.9% pure silver links.
• Current limiting capabilities to protect sensitive equipment.

Product Highlights

The KLPC1200 fuse is essential for applications such as switchboard mains, motor control centers, and large motor branch circuits. It effectively coordinates with upstream and downstream circuit protection devices.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Product Type: Time Delay Fuse

Technical Specifications

• Catalog Number: KLPC1200
• Amperage Rating: 1200 A
• Voltage Rating: 600 VAC/480 VDC
• Interrupt Rating: 20/200 kA
• Body Type: Cylindrical
• Mounting Type: Bolt
• Terminal Type: Knife Blade
• Material: Melamine
