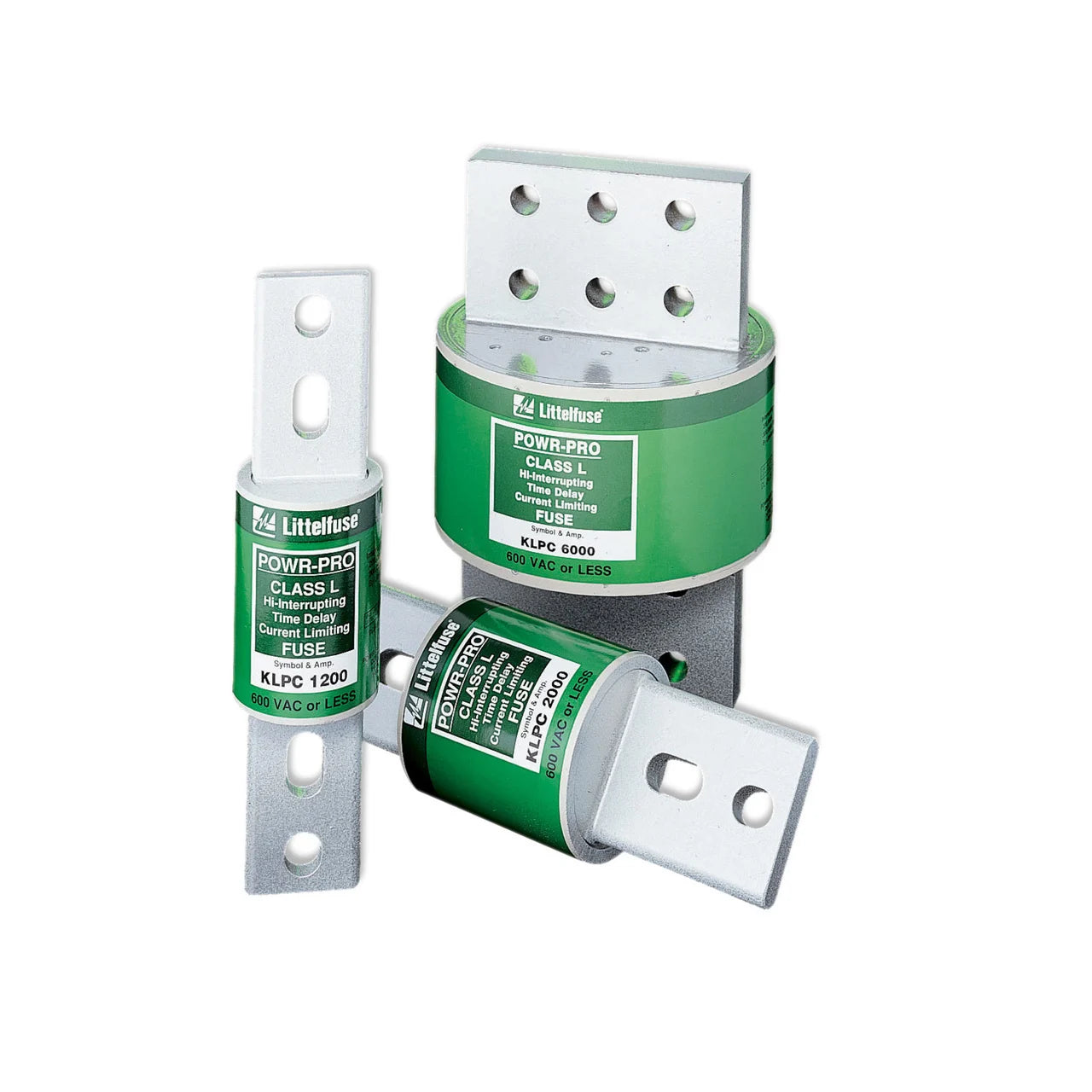

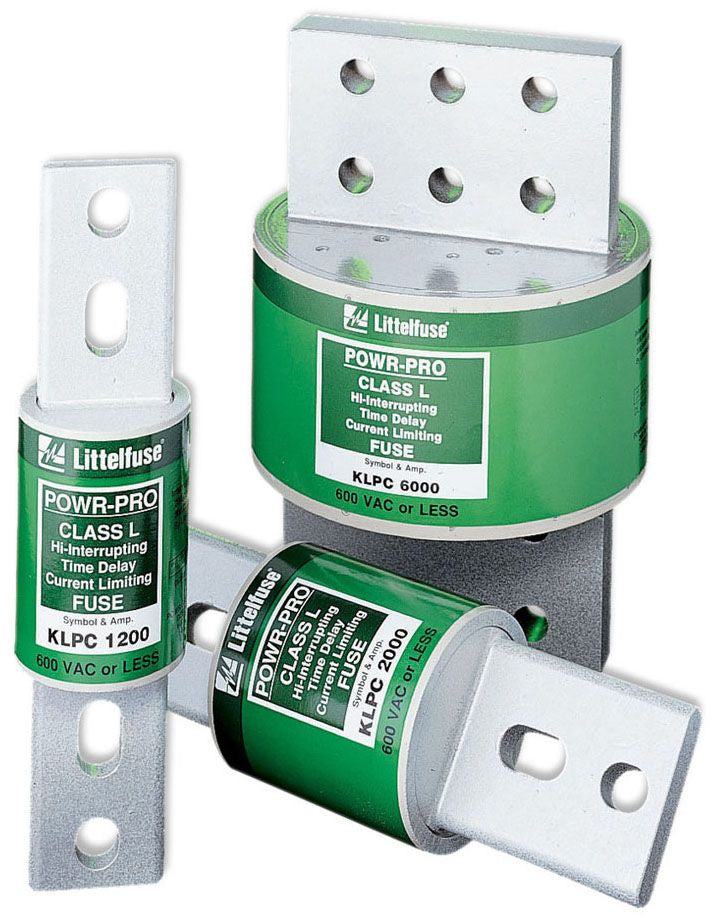

Littelfuse KLPC1000 UL CLASS L TIME-DELAY FUSE 1000 AMP 600 VAC/480 VDC

Product Description

The Littelfuse KLPC1000 is a time-delay fuse designed to offer overcurrent protection in circuits requiring up to 1000 amperes. It features a voltage rating of 600 volts alternating current and 480 volts direct current. This fuse is ideal for application in switchboard mains, feeders, and motor control center mains. With a robust construction that includes silver links and copper end bells, it provides reliability under demanding conditions.

• Current limiting: Protects against equipment damage during short circuits.
• Time delay: Ensures that transient surges do not cause unnecessary outages.
• Constructed with 99.9% pure silver links: Provides enhanced conductivity.

Product Highlights

The KLPC series offers features that make it suitable for both new installations and upgrades to existing systems. It meets stringent project specifications and is a UL listed Class L fuse that provides a minimum time delay under overload conditions.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: KLPC1000

Technical Specifications

• Amperage Rating: 1000 A
• Voltage Rating: 600 VAC / 480 VDC
• Interrupting Rating: 200 kA (AC), 20 kA (DC)
• Terminal Type: Blade
• Length: 10.75 inches
• Diameter: 2.5 inches
• Application: Switchboard Mains
• Country of Origin: Mexico
