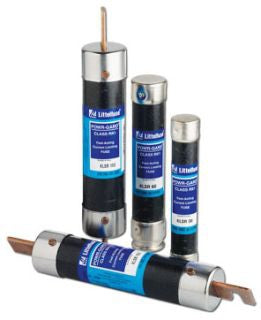

Littelfuse KLNR200 Fast Acting Fuse 200 AMP 250VAC

Product Description

The Littelfuse KLNR200 is a fast-acting fuse designed for protection in electrical circuits. This fuse features a current-limiting design which helps reduce damage from short-circuit currents. It is rated for 200 Amps and operates at 250 Volts AC. Its design is ideal for use in applications where sensitive equipment may be at risk.

• 200 Amp rating at 250 VAC
• Fast-acting fuse for surge-sensitive components
• Current-limiting capability enhances equipment protection

Product Highlights

The Littelfuse KLNR200 provides reliable protection against overcurrent conditions. It is particularly effective for protecting variable speed drives and rectifiers.

Product Information

Standard Information

• Manufacturer: Littelfuse
• UPC: 07945828088

Technical Specifications

• Type: Class RK1
• Interrupting Rating: 200000 Ampere (Symmetrical), 20000 Ampere (DC)
• Diameter: 1.59 inches
• Terminal Type: Blade
• Length: 7.13 inches
• Approval: UL 248-12, CSA, CE
• Body Type: Cartridge
• Element: Single
