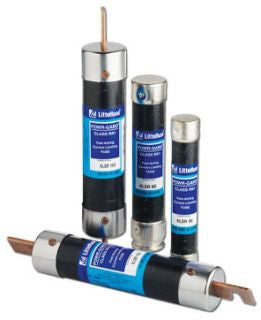

Littelfuse KLNR030 Fast Acting Fuse 30 AMP 250VAC

Product Description

The Littelfuse KLNR030 is a fast acting fuse rated at thirty amps and designed for use at two hundred fifty volts AC. This fuse is part of the Class RK1 series and is known for its current-limiting capabilities, enhancing equipment protection. It effectively reduces damage from short-circuit currents, making it ideal for sensitive electrical applications.

• Fuses with current-limiting design.
• Rated at 30 amps and 250 VAC.
• Used for equipment like variable speed drives and rectifiers.

Product Highlights

This product is suitable for various applications, including resistance heating and lighting circuits. The fast acting feature provides reliable protection, ensuring that equipment operates safely.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: Class RK1

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupt Rating: 200000 Ampere (Symmetrical), 20000 Ampere (DC)
• Approval: UL 248-12, CSA, CE
• Diameter: 0.56 inches
• Body Size: 9/16 inches Diameter x 2 inches Length
• Terminal Type: Ferrule
• Material: Composite
