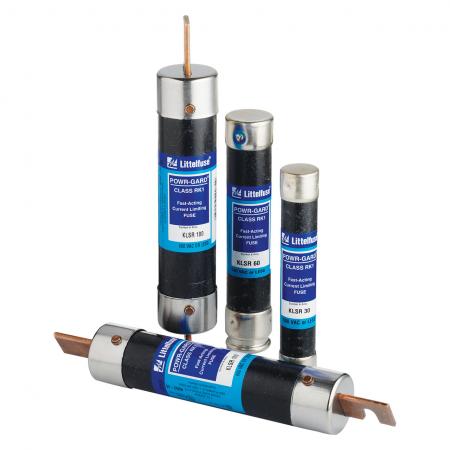

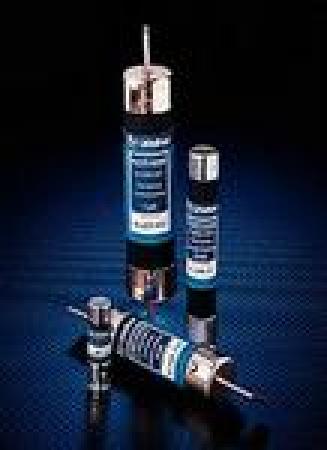

LITTELFUSE KLNR004 UL CLASS RK1 FAST-ACTING FUSE 4 A 250 VAC/125 VDC

Product Description

Littelfuse KLNR004 is a fast-acting fuse designed for quick interruption of short circuits. This fuse is rated at four amps and can handle voltages of 250 VAC and 125 VDC. It offers reliable protection in various applications, ensuring the safety of your electrical systems.

• Fast-acting protection for sensitive electrical components.
• Current limiting design to reduce equipment damage.
• Compatible with resistance heaters and lighting circuits.

Product Highlights

This fuse is essential for protecting machinery that includes surge-sensitive components, ensuring longevity and reliability.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLNR004

Technical Specifications

• Amperage Rating: 4 A
• Voltage Rating: 250 VAC/125 VDC
• Body Size: 9/16 inch Diameter x 2 inch Length
• Material: Composite
• Class: RK1
• Interrupt Rating: 200/20 kA
• Mounting Type: Holder
• Terminal Type: Ferrule
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Series: KLNR
• Type: Current Limiting High Speed North American Style
