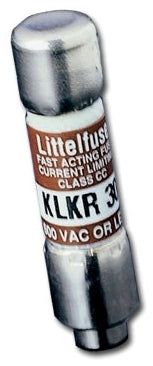

Littelfuse KLKR015 600 Volt POWR-GARD Fast Acting Fuse

Product Description

The Littelfuse KLKR015 is a 600 volt fast acting fuse designed for general-purpose branch circuit protection. This Class CC fuse features a compact size and is ideal for use in OEM equipment and control panels. It provides a rapid response to overloads, ensuring the safety and longevity of electrical equipment. Solid-state devices such as SCRs require fast-acting protection, which this fuse provides effectively.

• Voltage Rating: 600 volts AC
• Current Rating: 15 amps
• High Interrupting Rating: 200,000 A.I.R.

Product Highlights

This fuse's compact design allows for space-saving installation in panels and equipment. Its current-limiting capabilities provide superior protection against overcurrents, reducing the likelihood of damage to connected devices.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLKR015

Technical Specifications

• Type: Class CC
• Voltage: 600 volts AC / 300 volts DC
• Amperage: 15 amps
• Interrupting Rating: 200,000 AIC
• Application: General Purpose
• Country of Origin: Mexico
• Material: Melamine
• Approval Standards: UL 248-4, CSA
