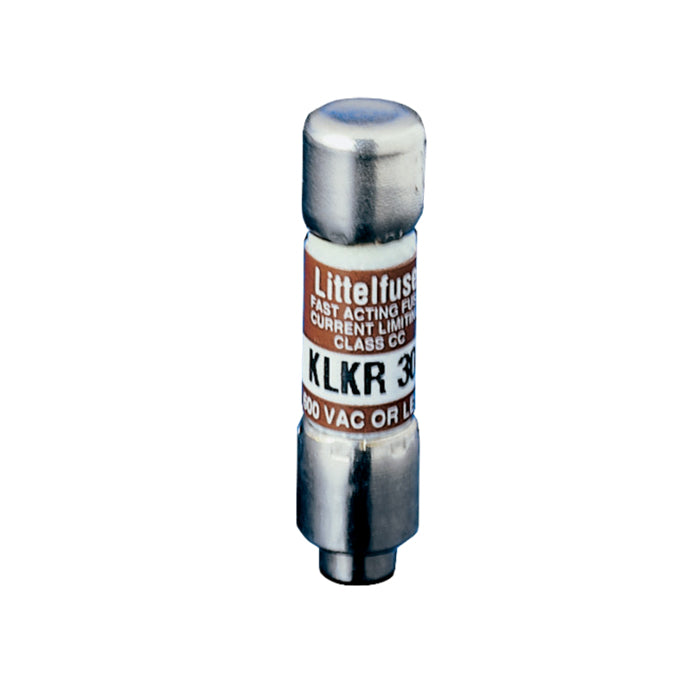

Littelfuse KLKR012S UL CLASS CC FAST-ACTING FUSE FOR MINING APPLICATIONS

Product Description

Littelfuse KLKR012S is a UL Class CC fast-acting fuse designed for mining applications. This fuse features a rating of twelve amperes and can handle voltages up to six hundred volts AC or three hundred volts DC. It provides reliable protection for electrical circuits with an interrupt rating of twenty kA at three hundred volts DC and two hundred kA at six hundred volts AC.

• Fast acting for immediate response to overcurrent situations.
• Compact design ensures effective protection in limited spaces.
• Rejection type fuse prevents improper installation with non-compatible devices.

Product Highlights

This fuse is highly effective in preventing damage to sensitive equipment by limiting current flow swiftly. Ideal for general-purpose applications, the Littelfuse KLKR012S supports diverse operational environments.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 12 A
• Body Size: 0.41 in Dia x 1.5 in L
• Class: CC
• Interrupt Rating: 20/200 kA
• Material: Melamine
• Mounting Type: Panel
• Rejection/Non-Rejection: Rejection
• Voltage Rating: 600 VAC/300 VDC
