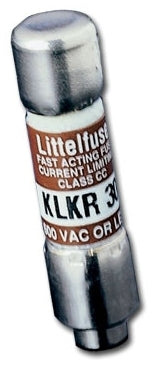

Littelfuse KLKR012 12 Amp 600 VAC 300 VDC Class CC Fast Acting Fuse

Product Description

The Littelfuse KLKR012 is a fast-acting fuse designed for branch circuit protection. It operates at twelve amps with a voltage rating of six hundred volts AC and three hundred volts DC, making it suitable for various applications. This fuse is part of the KLKR series, which emphasizes compact design and high interrupting ratings.

• Fast-acting design prevents damage from overloads.
• Compact size allows for reduced panel space.
• High current-limiting capability enhances safety.

Product Highlights

Ideal for OEM equipment and control panels, the KLKR012 effectively protects solid-state devices.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: KLKR012

Technical Specifications

• Voltage Rating: 600 VAC, 300 VDC
• Amperage Rating: 12 A
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Body Size: 13/32 inches diameter, 1.5 inches long
• Type: Class CC
• Material: Melamine, Nickel Plated Bronze Endcap
• Applications: General purpose overload protection
• Country of Origin: Mexico
